Showing all 6 results

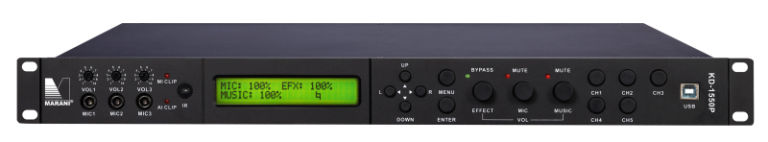

KD1550P
Digital Karaoke Processor

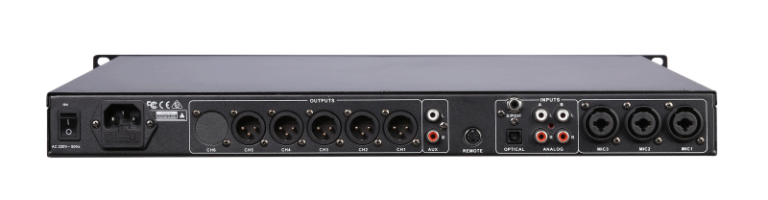

KD1550P is a high performance digital karaoke processor that allows independent control of audio processing on music sources, microphones and digital effects applied to the voice. It provides several inputs including 3 MICs, 2 stereo analog and 1 digital S/PDIF-Optical in addition to 5 outputs and 2 auxiliary outputs. All of these are managed by powerful MARANI® DSP. The microphone input section offers a complete set of functions for voice processing without modifying its original characteristics. It includes 10-band parametric EQ and Noise Gate in addition to Vocal Exciter function which provides amazing presence and brilliance to the singer’s voice.The input path also features a Feedback Eliminator with intensity adjustable to prevent feedback occuring during the performance.
For Microphone source, the KD1550P provides an effects section equipped with professional reverb and delay algorithms that allows the best effect/voice combination to be obtained through a full set of controls and mixing outputs. Furthermore, the delay section provides 3 independent delays selected as delay time and feedback in order to create particular effects. Looking at the Music input section, the KD1550P include 10-band Graphic Equalizer, Noise Gate and RMS Compressor. The output section provides 5 output, each of them include LP/HP, 4-band parametric equalizer, Peak Limiter and Delay up to 110ms. Furthermore, 2 auxiliary stereo outputs are used tomonitor either microphone signal from Pre/Post effects section or music signal from music input section. The KD1550P can be connected via USB by using the control remote PC SW setting all parameters and creating favorite presets. Moreover, it is equipped with wired and infrared remote control.

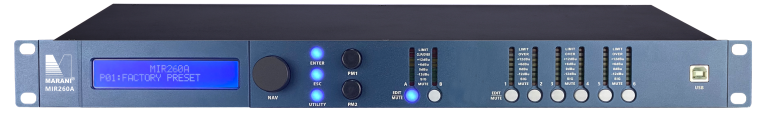

MIR260A
MIR 2 IN 6 OUT Professional Audio Processor
MIR260A is a digital audio processor newly designed by Marani. It has extremely low noise floor, high dynamic range and powerful internal DSP to cover most of the usage scenarios. Whether in meeting rooms , theaters , touring performances, or even large-scale tours, you can use the A series processors. Advanced circuit design and original DSP algorithm are the core of pure and high-quality sound.
In the signal processing part of MIR260A, inside powerful MARANI DSP, DSP and AD/DA converters are running at 96KHz sampling rate, complete processing functions provide a complete speaker crossover solution.
From input gain/delay/noise gate/EQ/compression/FIR ，tooutputgain/delay/polarity/frequency division/FIR/EQ/compression/compression, there are up to 16 types of parametric equalizer (PEQ) The filter type can be selected. The output crossover filter has the classic Linkwitz-Riley /Bessel/Butterworth, and there are also NXF horntype filters and FIR filters with a slope of up to 120dB per octave. The newly added MIR linear phase frequency divider filter can make the phase of the crossover point easier to join and produce a lower delay. Everything we provide is for better sound.
Added DSP plug-in, providing 96kHz FIR filter/highorder signal generator/RTA real-time spectrum analyzer, etc.
The newly designed Hard Limiter (Hard Limiter) allows a constant rate limit on signals exceeding the threshold at any threshold to better protect the speaker unit.
Each input and output channel provides a maximum 512-tap FIR filter, which can be customized by third-partysoftwaretogeneratetheFIR convolution you need. It can be used for speaker presets to improve the phase response and control the directivity according to requirements.
The newly added MIR linear phase divider filter has the filter shape of the traditional IIR filter (Linkwitz-Riley 24+48/oct), but does not produce any phase shift, and the resulting delay is about 50% of the FIR filter.

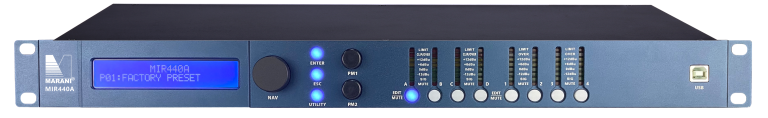

MIR440A
MIR440A is a digital audio processor newly designed by Marani. It has extremely low noise floor, high dynamic range and powerful internal DSP to cover most of the usage scenarios. Whether in meeting rooms ,theaters , touring performances, or even large-scale tours, you can use the A series processors. Advanced circuit design and original DSP algorithm are the core of pure and high-quality sound.
In the signal processing part of MIR440A, inside powerful MARANI DSP, DSP and AD/DA converters are running at 96KHz sampling rate, complete processing functions provide a complete speaker crossover solution.
From input gain/delay/noise gate/EQ/compression/FIR ，tooutputgain/delay/polarity/frequency division/FIR/EQ/compression/compression, there are up to 16 types of parametric equalizer (PEQ) The filter type can be selected. The output crossover filter has the classic Linkwitz-Riley /Bessel/Butterworth, and there are also NXF horntype filters and FIR filters with a slope of up to 120dB per octave. The newly added MIR linear phase frequency divider filter can make the phase of the crossover point easier to join and produce a lower delay. Everything we provide is for better sound.
Added DSP plug-in, providing 96kHz FIR filter/highorder signal generator/RTA real-time spectrum analyzer, etc.
The newly designed Hard Limiter (Hard Limiter) allows a constant rate limit on signals exceeding the threshold at any threshold to better protect the speaker unit.
Each input and output channel provides a maximum 512-tap FIR filter, which can be customized by third-partysoftwaretogeneratetheFIR convolution you need. It can be used for speaker presets to improve the phase response and control the directivity according to requirements.
The newly added MIR linear phase divider filter has the filter shape of the traditional IIR filter (Linkwitz-Riley 24+48/oct), but does not produce any phase shift, and the resulting delay is about 50% of the FIR filter.

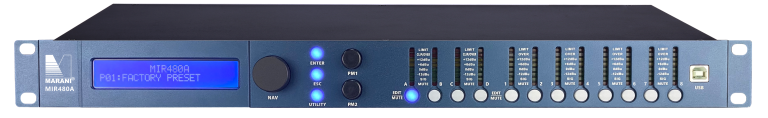

MIR480A
MIR 4 IN 8 OUT Professional Audio Processor
MIR480A is a digital audio processor newly designed by Marani. It has extremely low noise floor, high dynamic range and powerful internal DSP to cover most of the usage scenarios. Whether in meeting rooms , theaters , touring performances, or even large-scale tours, you can use the A series processors. Advanced circuit design and original DSP algorithm are the core of pure and high-quality sound.
In the signal processing part of MIR480A, inside powerful MARANI DSP, DSP and AD/DA converters are running at 96KHz sampling rate, complete processing functions provide a complete speaker crossover solution.
From input gain/delay/noise gate/EQ/compression/FIR ，tooutputgain/delay/polarity/frequency division/FIR/EQ/compression/compression, there are up to 16 types of parametric equalizer (PEQ) The filter type can be selected. The output crossover filter has the classic Linkwitz-Riley /Bessel/Butterworth, and there are also NXF horntype filters and FIR filters with a slope of up to 120dB per octave. The newly added MIR linear phase frequency divider filter can make the phase of the crossover point easier to join and produce a lower delay. Everything we provide is for better sound.
Added DSP plug-in, providing 96kHz FIR filter/highorder signal generator/RTA real-time spectrum analyzer, etc.
The newly designed Hard Limiter (Hard Limiter) allows a constant rate limit on signals exceeding the threshold at any threshold to better protect the speaker unit.
Each input and output channel provides a maximum 512-tap FIR filter, which can be customized by third-partysoftwaretogeneratetheFIR convolution you need. It can be used for speaker presets to improve the phase response and control the directivity according to requirements.
The newly added MIR linear phase divider filter has the filter shape of the traditional IIR filter (Linkwitz-Riley 24+48/oct), but does not produce any phase shift, and the resulting delay is about 50% of the FIR filter.
MIR480I
Flagship MIR 4 IN 8 OUT Audio System Processor
MIR480I uses powerful MARANI DSP in signal processing. DSP and AD/DA converter both run at 96KHz sampling rate. Complete processing functions provide a complete speaker crossover solution
From the input gain/delay/noise gate /EQ/ compression /FIR to the output gain/delay/polarity/
crossover/FIR/EQ/ compression/peak limiter, the parametric equalizer (PEQ) has up to 16 filter types to choose from. The output crossover filter has the classic Ringquitzrelli/Bessel/Butterworth, The NXF（Notched X-over Filter） and FIR filter with slope up to 120dB per octave are also available. The new MIR linear phase crossover filter makes it easier to engage the phase of the crossover point and produces lower latency. Everything we offer is for better sound.
With the addition of DSP plug-in, traditional processor architecture is usually fixed and unadjustable. Marani innovatively introduces the concept of plug-in, and uses powerful co-processor to complete dynamic processing that traditional processor is difficult to complete, such as dynamic balancing, linear phase multi-segment compression, feedback suppression and other functions. This feature is an open architecture, and the type and number of plug-ins will be updated from time to time.
The new design of Hard Limiter allows constant rate limiting of signals exceeding the threshold at any threshold, better protecting the speaker unit.
Each input/output channel provides a filter with a maximum of 512 tap FIR. You can use the built-in AutoEQ plus an external ASIO sound card to measure pulse and generate FIR coefficient or use third-party software to generate FIR coefficient as you need. For speaker preset, phase response can be improved and directivity can be controlled as required.
The new MIR linear phase crossover has the type and shape of the traditional IIR filter, but does not produce any phase distortion, and the delay generated is about 50% of the FIR filter.

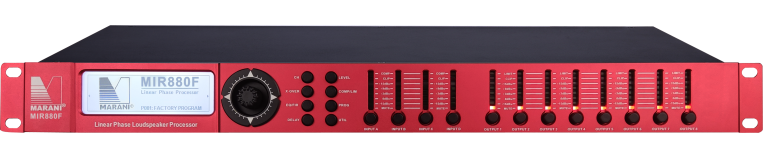

MIR880F
Flagship MIR 8 IN 8 OUT Audio System Processor
The Mir-F family of digital processors are Marani's new flagship system processors, including the MIR480I and MIR880F.The hardware adopts top AD/DA chips with excellent -96dBu background noise. It also has analog, digital AES/EBU, and Dante signal access capabilities, and has automatic switching function. Any signal can be set as the highest priority. As the core processor of the system, it has the redundancy and backup characteristics, and is suitable for government projects, high-end clubs, large mobile performances, theaters, radio and television and other places with higher requirements for signal processing.
From the input gain/delay/noise gate /EQ/ compression /FIR to the output gain/delay/polarity
/crossover/FIR/EQ/ compression/peak limiter, the parametric equalizer (PEQ) has up to 16 filter types to choose from. The output crossover filter has the classic Ringquitzrelli/Bessel/Butterworth, The NXF（Notched X-over Filter） and FIR filter with slope up to 120dB per octave are also available. The new MIR linear phase crossover filter makes it easier to engage the phase of the crossover point and produces lower latency. Everything we offer is for better sound.
With the addition of DSP plug-in, traditional processor architecture is usually fixed and unadjustable. Marani innovatively introduces the concept of plug-in, and uses powerful co-processor to complete dynamic processing that traditional processor is difficult to complete, such as dynamic balancing, linear phase multi-segment compression, feedback suppression and other functions. This feature is an open architecture, and the type and number of plug-ins will be updated from time to time.
The new design of Hard Limiter allows constant rate limiting of signals exceeding the threshold at any threshold, better protecting the speaker unit.
Each input/output channel provides a filter with a maximum of 512 tap FIR. You can use the built-in AutoEQ plus an external ASIO sound card to measure pulse and generate FIR coefficient or use third-party software to generate FIR coefficient as you need. For speaker preset, phase response can be improved and directivity can be controlled as required.
The new MIR linear phase crossover has the type and shape of the traditional IIR filter, but does not produce any phase distortion, and the delay generated is about 50% of the FIR filter.
