UHF Professional Wideband Wireless System. Consists of ACT-747 quad-channel and ACT-727 dual-channel wideband receivers.
ACT-700H
UHF Analog Wideband Handheld Transmitter
- Aesthetically designed in special fog black color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.
- The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
- The patented power switch module integrates mute, set buttons, LCD and power switch lock hook for convenience to operate and prevents the power switch from accidental operation.
- In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output and mute mode are also programmable.
- 5 switchable gain levels with input sensitivity preset to equal the sensitivity of the microphone capsule at 0 dB.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-700H features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
- A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
- Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.

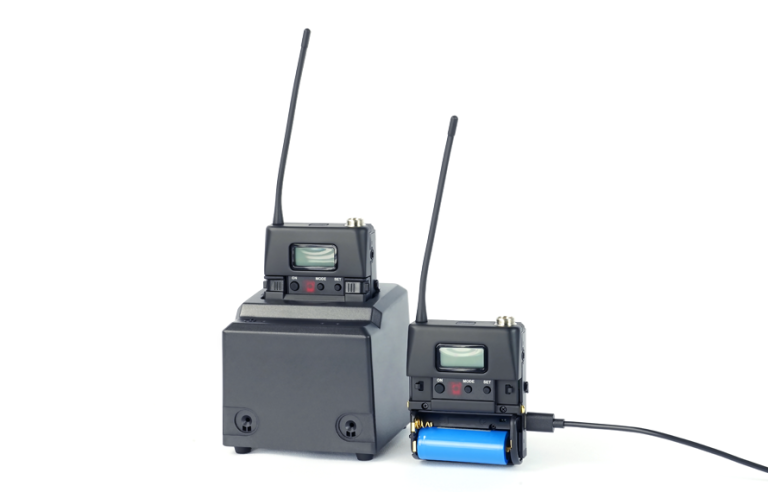

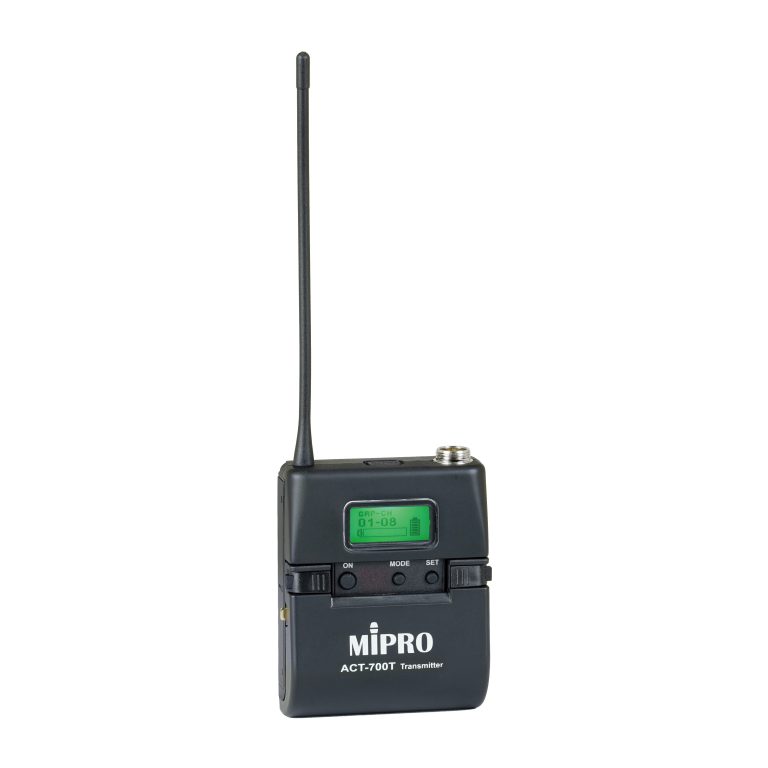

ACT-700T
UHF Analog Wideband Bodypack Transmitter
- Newly designed compact and lightweight housing for easy wearing.
- The panel integrates a backlit LCD and setup buttons for easy operation and view of all operating information, and a lockable power switch prevents the power switch from accidental operation.
- In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output, and button lock modes are also programmable.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver
- 5 switchable gain levels.
- Mute button and remote-control jack allow quick setting of MUTE function.
- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-700T features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
- A belt clip for easy wearing.

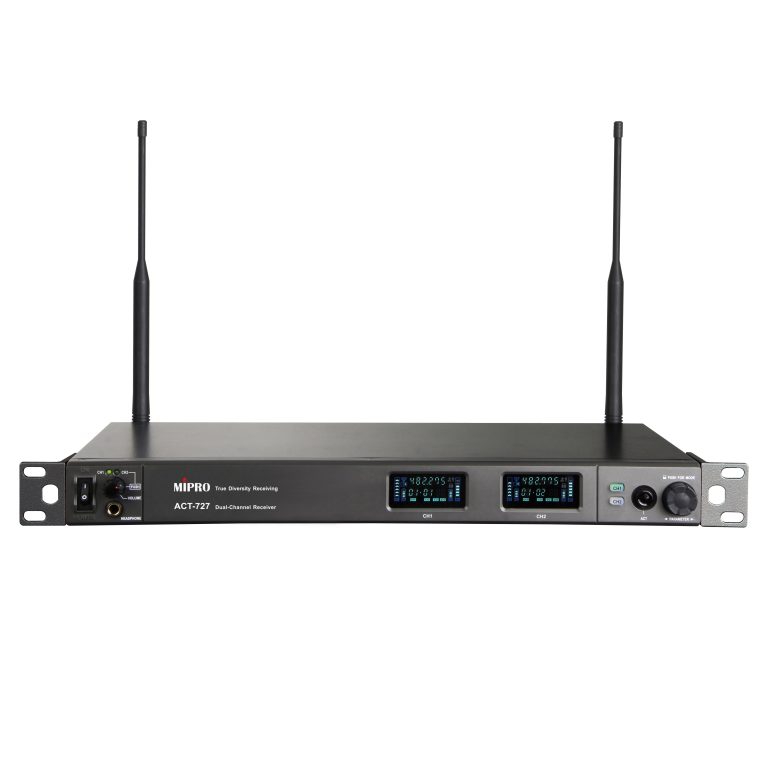

ACT-727
UHF Analog Wideband Dual-Channel Receiver
- EIA standard metal chassis, with a newly designed VFD screen, monitor headphone jack, a rotary control knob and buttons equipped on the front panel. The VFD screen will automatically turn bright to identify “Working” or “Standby” mode.
- Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
- Advanced true diversity receiving circuit ensures long-distance and stable reception without signal dropout.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 224 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional Dante digital network interface for digital audio output.
- Optional MIPRO Wireless Console computer monitoring software offers frequency analysis and configuration, along with monitoring of all channels and interference signals in the environment.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-700H handheld and ACT-700T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.

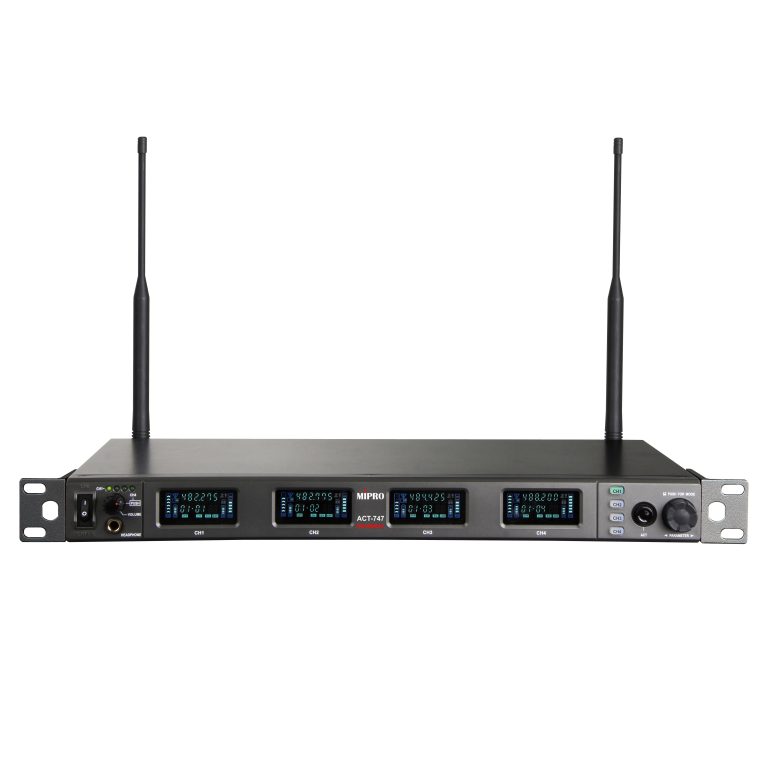

ACT-747
UHF Analog Wideband Quad-Channel Receiver
- EIA standard metal chassis, with a newly designed VFD screen, monitor headphone jack, a rotary control knob and buttons equipped on the front panel. The VFD screen will automatically turn bright to identify “Working” or “Standby” mode.
- Exclusive 72 MHz wideband circuit increases interference-free compatible channels.
- Advanced true diversity receiving circuit ensures long-distance and stable reception without signal dropout.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 224 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 2,881 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional Dante digital network interface for digital audio output.
- Optional MIPRO Wireless Console computer monitoring software offers frequency analysis and configuration, along with monitoring of all channels and interference signals in the environment.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-700H handheld and ACT-700T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
