Showing all 4 results

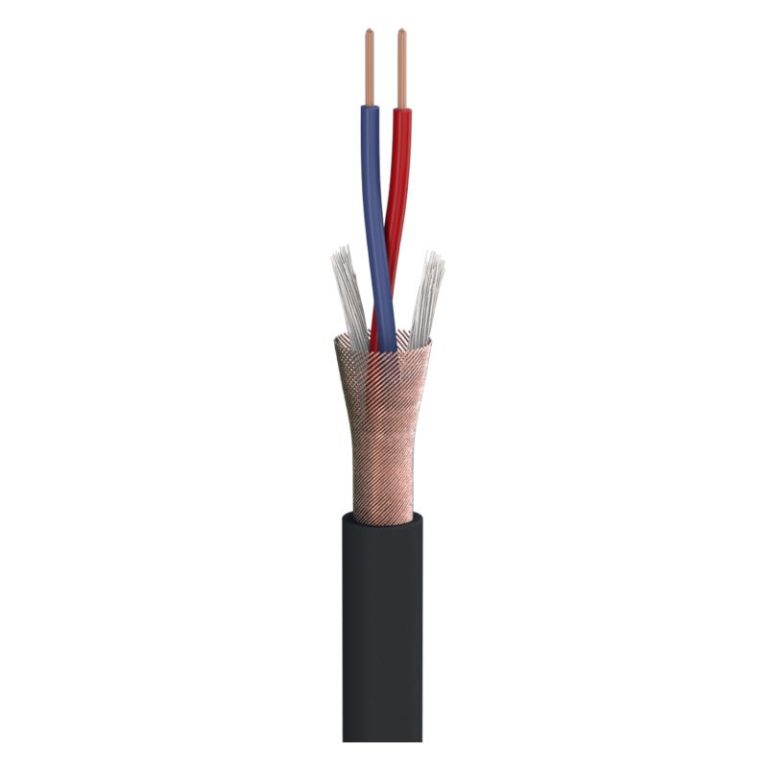

Club Series MKII
No blood running through those veins...
but yet a whole lot of life. A wire gauge of 2 x 0,34 mm² is impressive and the electrical data speaks for itself. A cable that provides great performance data at an excellent price, used for stage and studio settings. The large cross section and the low capacitance guarantee outstanding transmission quality, even over longer distances. The shielding, made of bare copper wires has a 95 % optical coverage (instead of the usual 85 %). The robust, rubberlike, matt outer sleeve is preferred by performing musicians and guarantees outstanding flexibility even in lowest temperatures.
Advantages:
- High transmission quality through the use of oxygen-free copper stranding with a large wire gauge of 2 x0,34 mm²
- Very low capacitance due to PE insulation
- Good shielding due to the dense Cu mesh screen
- High flexibility makes it easy to reel
Application:
- Stage application
- Studio operation
- Permanent Installation

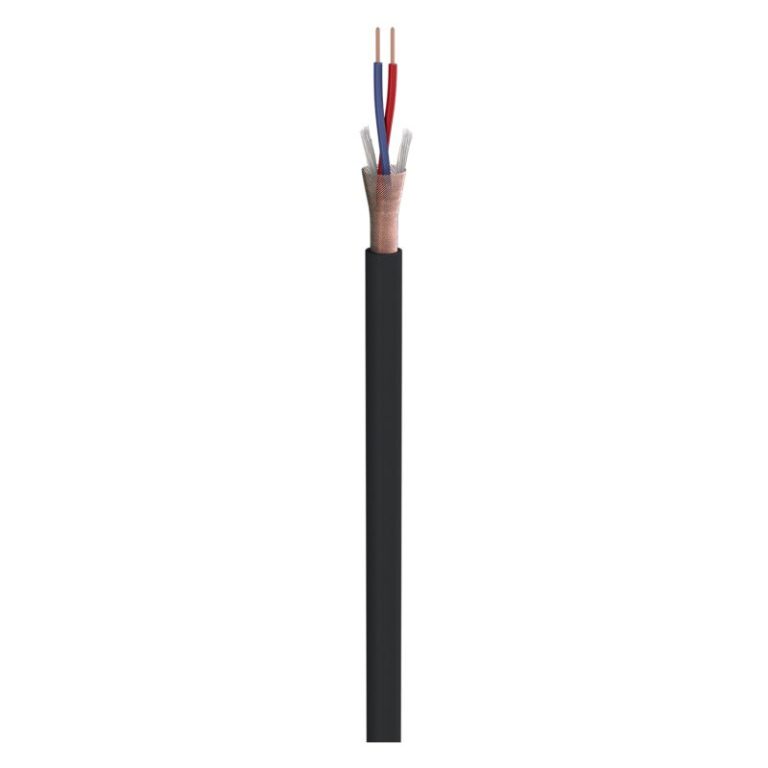

SC-Galileo 238
Dual screen...
shields better. Just like the SC-SYMBIOTIC, but a little bit more exclusive due to the dual reversely stranded helical copper mesh screen and the wire pairs embedded in PVC. This makes it even more flexible. Because of the thicker wire diameter (2 x 0,38 mm²) it is suitable for distances greater than 100 meters. This cable is technically sophisticated and may be the best microphone cable on the world market. Your clients in the recording studio will be surprised at the low-noise transmission!
Advantages:
- Extreme long life and twist-proof due to the thick jacket and the wire pairs embedded in PVC
- Absolutely neutral and loss-free audio transmission due to the use of fine copper wires
- Excellent protection due to the dense reverse dual mesh screen
- Very flexible due to the tightly stranded conductors and wires
- Loss-free transmission over long distances due to a large wire gauge of 2 x 0,38 mm²
Application:
- Highly professional studio and stage technology
- Demanding OB van technology for radio and broadcasting
- First-class hifi connection (red and white conductors on pin 1, separate shielding)
SC-Isopod SO-F22 9 ( black )
The memory cable...
Will get things in order. In switching cabinets and racks it often looks like on grandma's knitting pattern. Tidiness is indispensable. The SC-Isopod SO-F22 is a 2-wire, foil-shielded cable with a compact outer diameter of 3,30 mm. The cable is primarily used for the internal wiring in audio and hi-fi components. It has a “memory effect“ and can be laid “around the corner“ easily. The Cu wires of the individual wire pairs are already pre-stranded and very easy to strip. For a simpler assembly, the cable has an additional pre-stranded, tin-plated drain wire. It is shielded by an AL/PT foil that will automatically stick on the jacket when stripping it.
Advantages:
- Quick and easy to handle
- Robust plastic jacket for long life
- Easy to lay thanks to “memory effect”
Application:
- Internal wiring of racks, audio and hifi components
Stage 22 Highflex
One thick coat...
Protects the inner structure against mechanical strain such as pulling, tearing and knotting. This is why we gave STAGE 22 a thick outer jacket of 6,40 mm. But also the electrical values and the technical construction are very presentable: the STAGE 22 has a low capacitance and high bending cycles, provided by the super thin, tightly stranded single wires. The shielding of bare Cu wires has an optical coverage of 99 % (instead of the otherwiseusual 85 %). The STAGE 22 is therefore the ideal cable for stage, homerecordists, renters and ELA technicians. The STAGE 22 is a very inexpensive cable, but you won't have to accept any trade-offs.
Advantages:
- High transmission quality due to the usw of fine stranding
- Very rugged owing to the thick, soft PVC jacket
- Good shielding due to dence helical copper mesh screen
- High flexibility makes it easy to reel
- Affordable price
Miscellaneous:
- without cable printing
Application:
- Stage application
- Home recording
