INSTRUMENT CABLE

SC-Onyx 2008

The twin cable...

is similar in design and quality to the TRICONE MKII, but a little thinner due to the twin construction. It is well-suited for manufacturing hifi cables, adapters and for permanent installation. And it fits nearly all jack and RCA connectors. The SC-Onyx 2008 can be spliced at the centre of the cable. Each wire has its own helical copper mesh screen plus a thick jacket. The insulation is marked in white and yellow. The SC-Onyx 2008 is very small in diameter which makes it ideal for fitting mini jack connectors.

Advantages:

  • Very flexible because of its fine single litz design
  • Each conductor is insulated and individually shielded with a helical copper mesh screen
  • Cables may be separated easily by hand
  • Small jacket diameter, ensuring easy handling with RCA and jack connectors

Application:

  • Cabling of unbalanced devices (keyboards)
  • Connection lead for hifi components
  • Assembly of Y-adapter cable
  • Assembly of insert cable

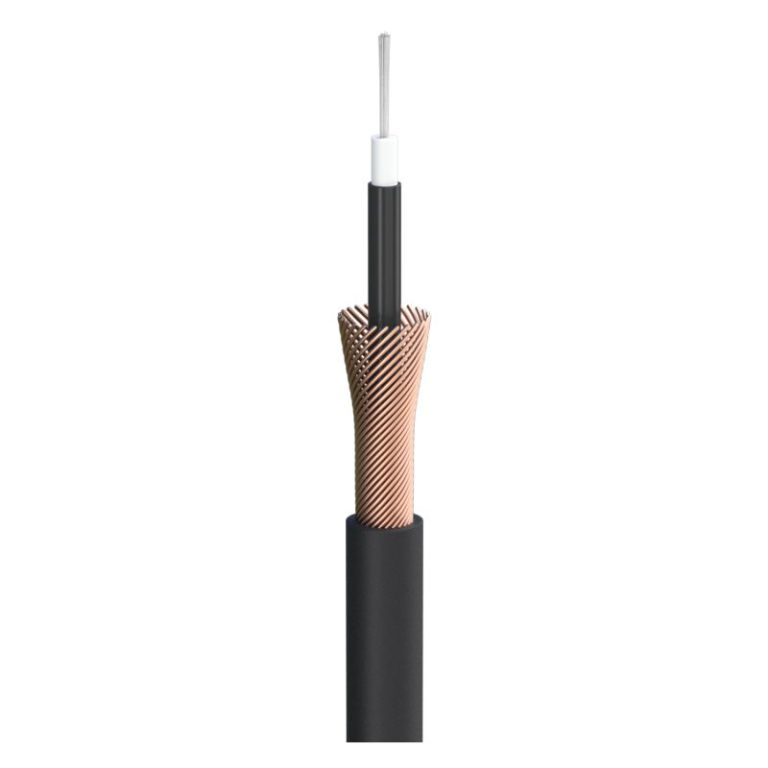

Tricone® MKII

String artists...

will be delighted at this cable. The Tricone® MKII is a flexible cable for guitar or keyboard and equally interesting for the live musician, studio keyboarder and the home recorder. Because of its decent wire gauge of 0,22 mm² and the fine single 0.10 mm wires, it is protected against cable break and convinces with high bending cycles. It is very robust, easy to reel and very reasonably priced. When making cables, care should be taken to remove the conductive shielding (black PVC hose) from the insulation so that it won’t touch the inner conductor. Tricone® MKII is a protected and registered trademark of SOMMER CABLE GmbH.

Advantages:

  • Very robust due to the large wire cross-section and fine Cu single wires
  • Good electrical values due to the Skin PE insulation
  • 100 % protection by dual shielding (helical copper mesh screen + conductive carbon screen)
  • High number of bending cycles

Application:

  • Dependable cable for live applications (guitar and keyboard)
  • Economy-priced Line-in or Patchcable for the Homerecorder
