| Model | ACT-32T |
|---|---|
| Name | UHF Analog Bodypack Transmitter |
| Frequency Range | UHF 480 – 934 MHz (country dependent) |
| Bandwidth | 24 MHz |
| Display | Backlit LCD |
| Mic. Capsule Modules | Work with all MIPRO’s lavalier and headworn mics |
| Input Connector | MIPRO 4-Pin Mini XLR |
| AF Sensitivity | Preset at 0 dB (equal to capsule sensitivity) 5 switchable levels: -12 dB to 12 dB |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Spurious Emission | < 4 nW |
| Battery Type | Two AA alkaline |
| Dimensions | 63 × 82 × 22 mm (W × H × D) |
| Weight | Approx. 86 g |

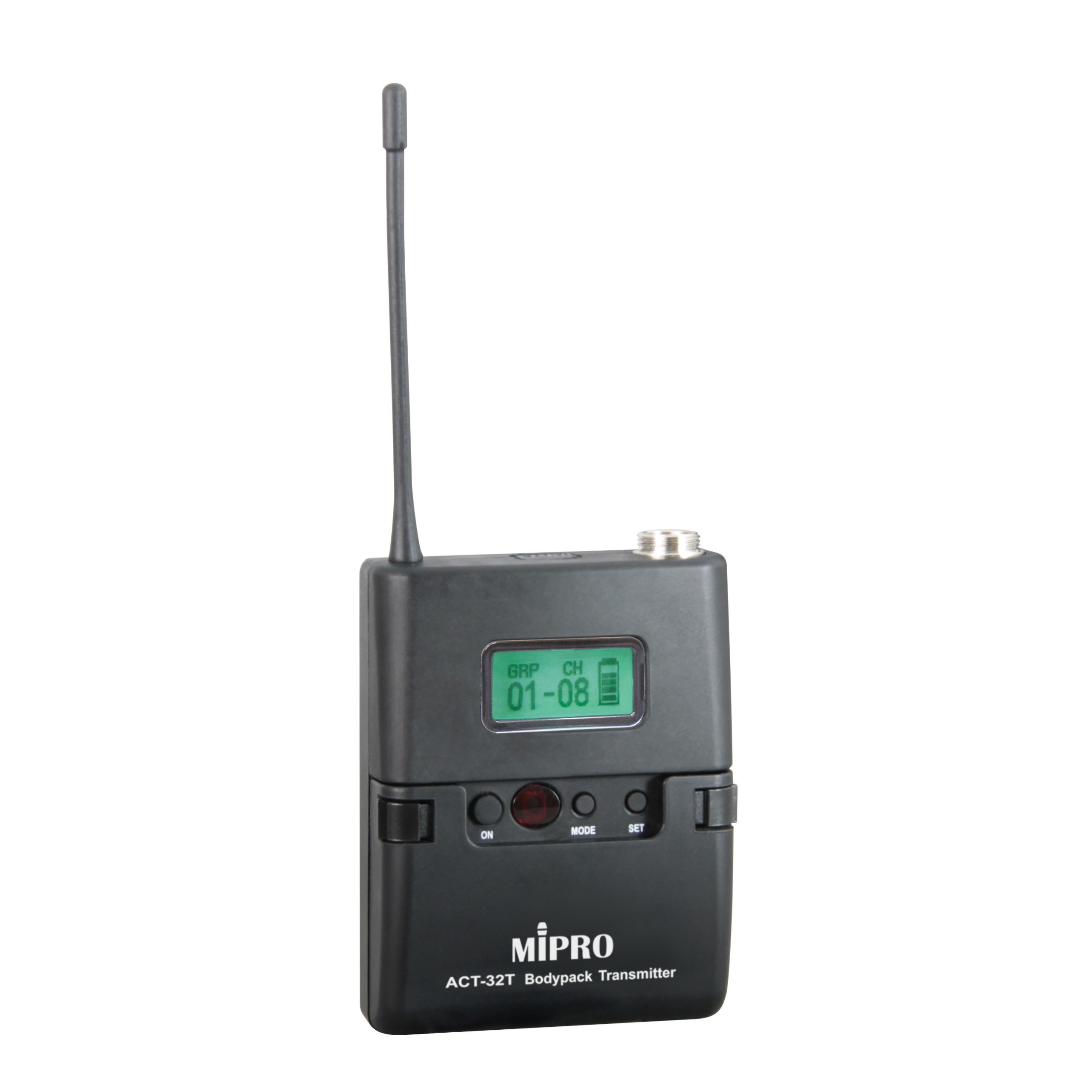

ACT-32T
UHF Analog Bodypack Transmitter
- An LCD on the panel displays the operating information.
- Powered by two AA alkaline batteries.
- In addition to the power switch and the mute button, functions such as input sensitivity, power output, and mute modes are also programmable.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- 5 switchable gain levels.
- Mute button and remote-control jack allow quick setting of MUTE function.
- Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
