| Model | ACT-515 | ||
|---|---|---|---|
| Name | UHF Analog Single-Channel Receiver | ||
| Channel | Single | ||
| Chassis | EIA standard half-rack (9.5″) metal chassis | ||
| Display | Two-color backlit LCD | ||
| Frequency Range | UHF 480 – 934 MHz (country dependent) | ||
| Bandwidth | 24 MHz | ||
| Receiving Mode | True diversity | ||
| Sensitivity | 6 dBμV @ S/N > 80 dB | ||
| Frequency Response | 50 Hz – 18 kHz | ||
| Dynamic Range | > 111 dBA | ||
| Audio Output | Balanced: +16 dB / 0 dB / -6 dB, Unbalanced: +10 dB / 0 dB / -6 dB | ||
| Network Interface | N/A | ||
| PC Interface | USB interface. MIPRO ACT-BUS for remote-control of up to 64 channels. FSA compatible channels calculator software allows users to manually set compatible channels. (Sold separately) | ||
| Antenna | 50Ω TNC female connector provides bias for the MIPRO antenna systems | ||
| Power Supply | DC 12 – 15 V. External AC 100 – 240 V switching power supply | ||
| Dimensions | 210 × 44 × 163 mm (W × H × D) | ||
| Weight | Approx. 0.9 kg |

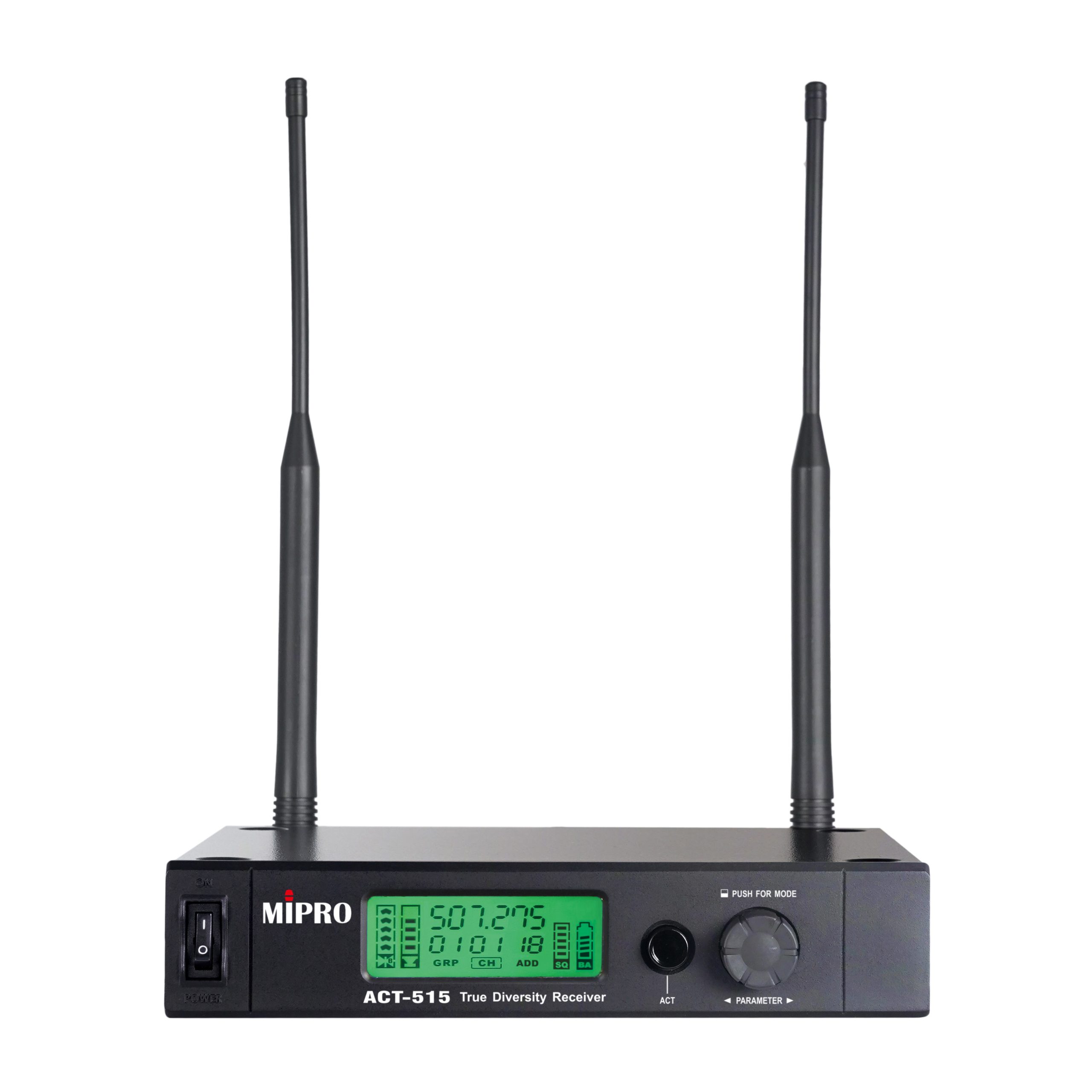

ACT-515
UHF Analog Single-Channel Receiver
- EIA standard metal chassis, with a newly designed LCD, a rotary control knob and buttons equipped on the front panel. The LCD screen automatically shifts colors to identify “Working” or “Standby” mode. An optional Dante network interface is available.
- Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- Pairs with ACT-500H handheld and ACT-500T bodypack transmitter.
- All are designed and made in Taiwan to ensure high quality and value.
