| Model | ACT-700H |
|---|---|
| Name | UHF Analog Wideband Handheld Transmitter |
| Frequency Range | UHF 480 – 934 MHz (country dependent) |
| Bandwidth | 72 MHz |
| Display | Backlit LCD |
| Capsule Modules | MU-90A condenser or MU-59A dynamic. Accepts some other brands’ with similar specifications |
| AF Sensitivity | Preset at 0 dB (equal to capsule sensitivity) 5 switchable levels: -6 dB to 6 dB |
| RF Power Output | 10 mW / 50 mW switchable (country dependent) |
| Spurious Emission | < 4 nW |
| Battery Type | One 18500 Li-ion battery or two AA alkaline |
| Battery Charging | MP-800 / MP-820 charging station or USB Type-C |
| Dimensions | 51 × 272 mm (Ø × L) |
| Weight | Approx. 330 g |

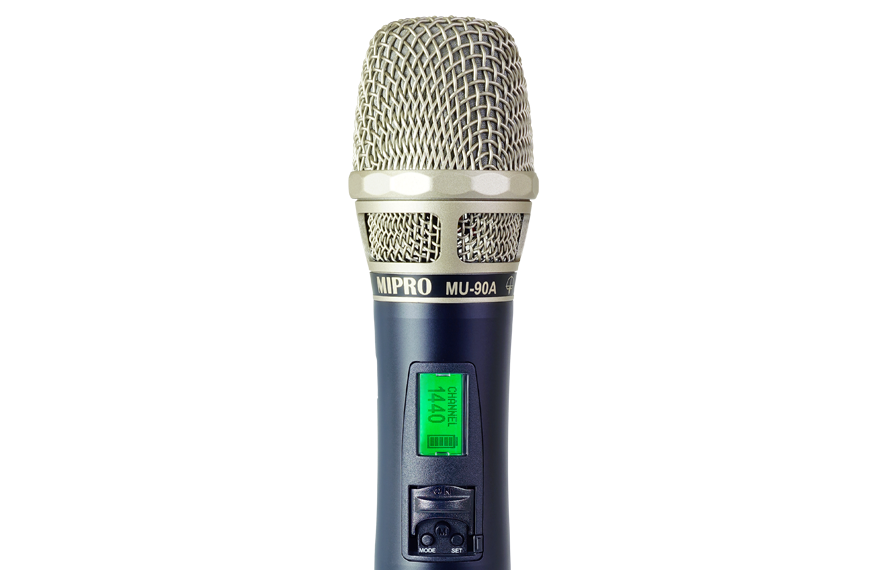

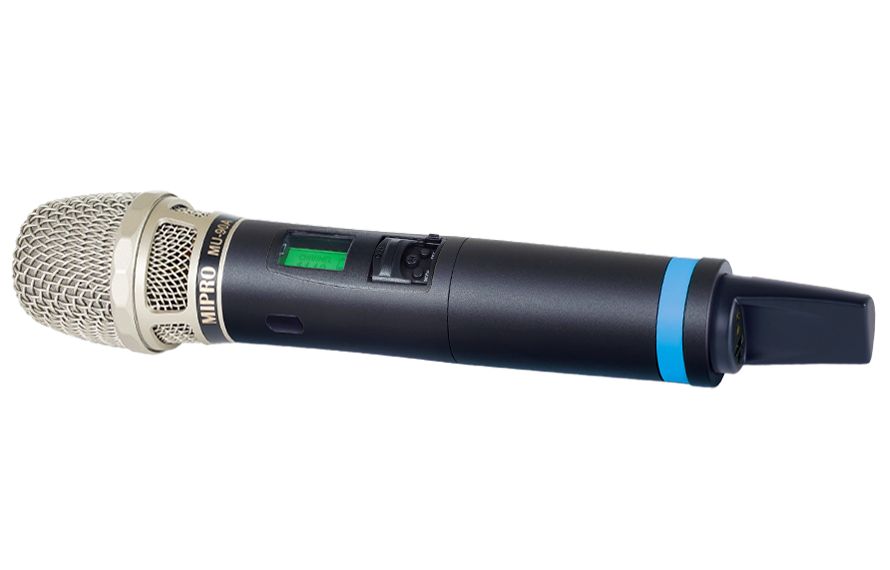

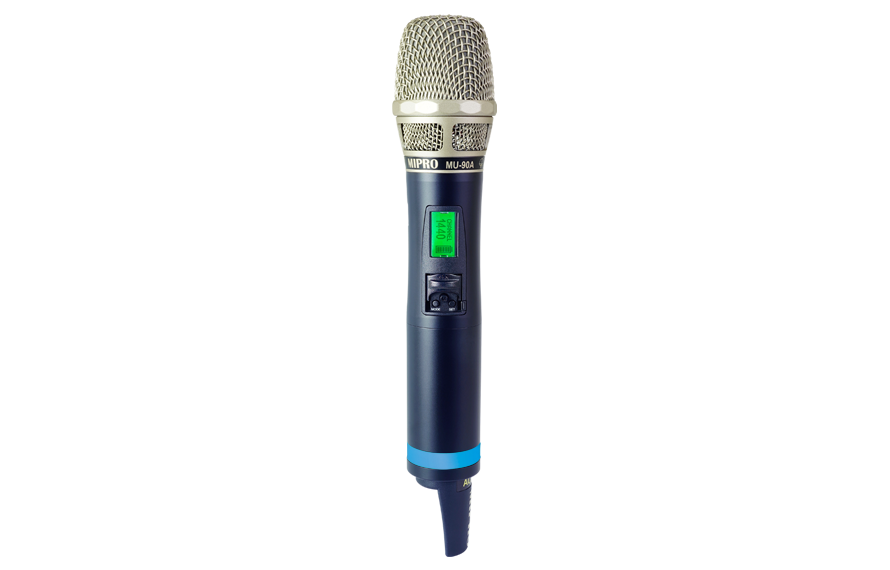

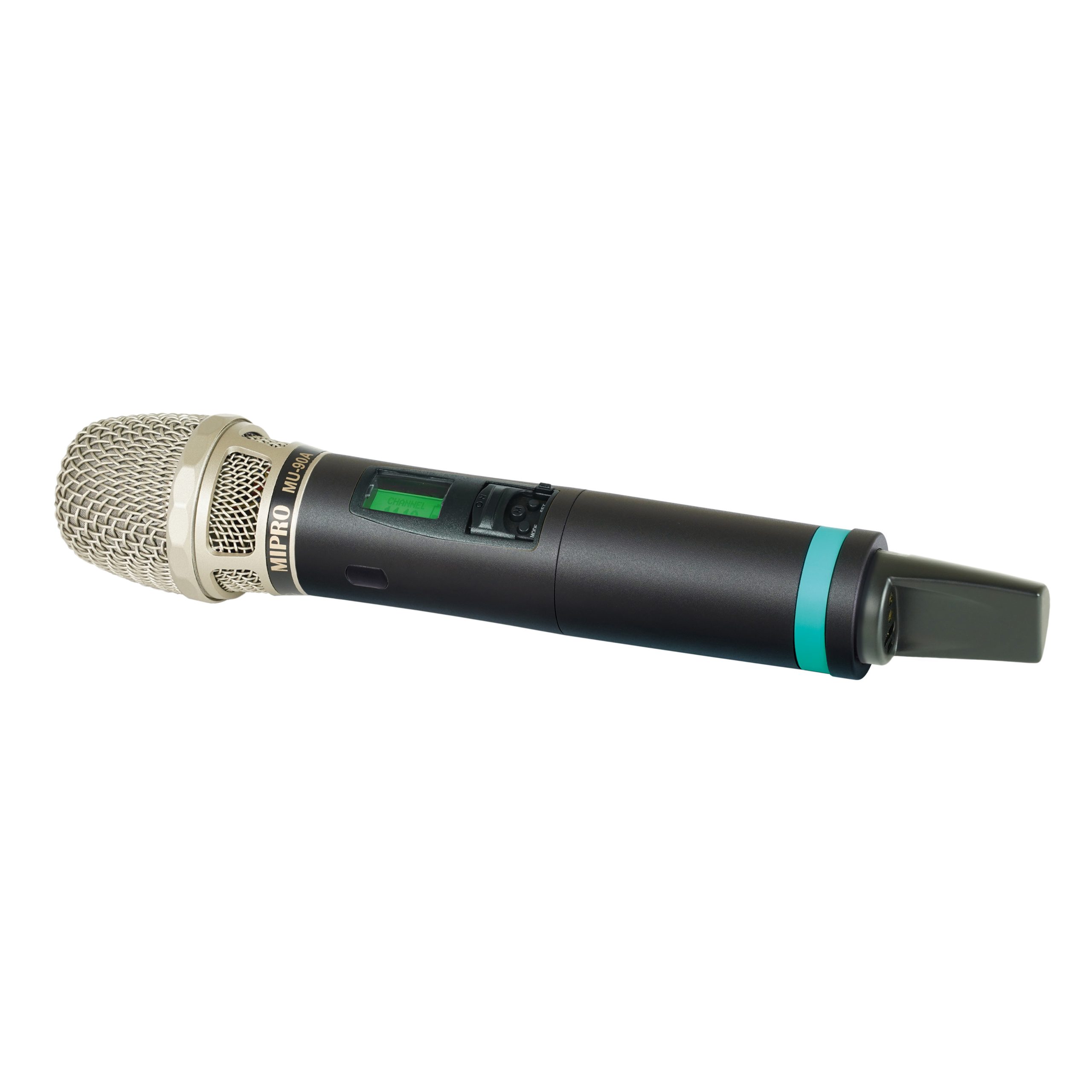

ACT-700H
UHF Analog Wideband Handheld Transmitter
- Aesthetically designed in special fog black color metal housing features the most comfortable handheld size and presents ultra-low handling noise and a luxurious professional appearance.
- The unique metal grille of the microphone capsule module can be divided into the upper grille and the lower grille. The upper grille can be detached for cleaning; the lower grille is connected with the housing by an external thread. The robust metal grille protects the capsule against impact, rolling and pop noise, and ensures clarity of sound.
- The patented power switch module integrates mute, set buttons, LCD and power switch lock hook for convenience to operate and prevents the power switch from accidental operation.
- In addition to the power switch and the mute button, functions such as input sensitivity, low frequency reduction, volume limit, power output and mute mode are also programmable.
- 5 switchable gain levels with input sensitivity preset to equal the sensitivity of the microphone capsule at 0 dB.
- The world’s first ACT™ function provides precise and rapid frequency sync to the receiver.

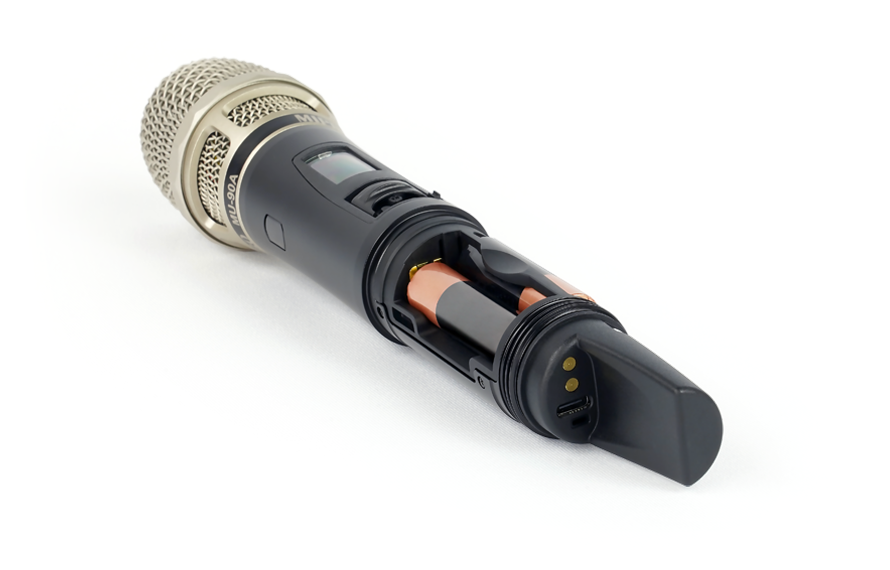

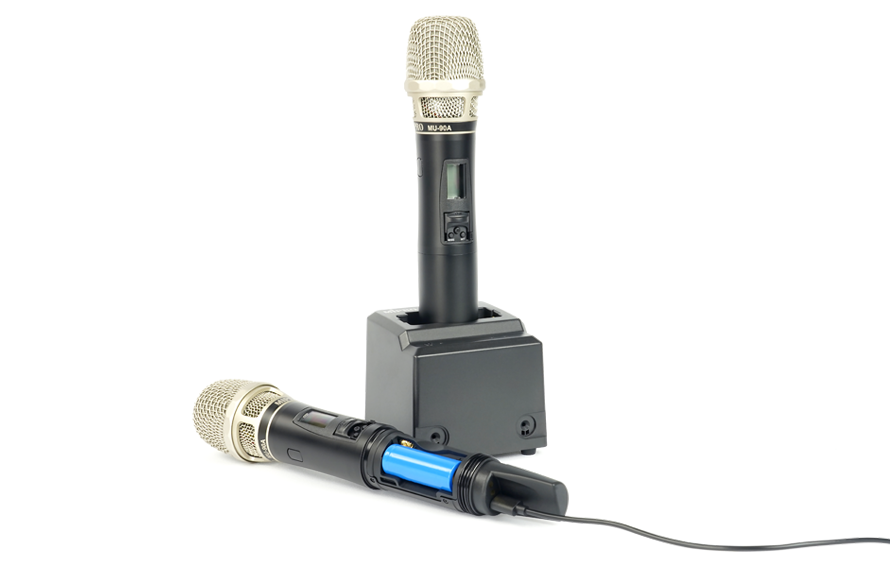

- The patented battery compartment can be inserted with two AA-type batteries or one rechargeable Li-ion battery, charging via USB Type-C with the foolproof and safe charging circuit. The second-generation ACT-700H features charging contacts and can also be placed on an optional single-slot or dual-slot charging station for charging.
- A color-coded channel identification ring is put on the end of the housing. A high efficiency wideband transmitting antenna and USB Type-C charging socket built in a patented antenna cover on the bottom of the housing.
- Pairs with all MIPRO’s new interchangeable microphone modules featuring high dynamic range for loud singing without distortion. Also accepts some other brands’ microphone modules with similar specifications.
Description
Reviews (0)
Shipping & Delivery
Related products
ACT-311
UHF Analog Single-Channel Receiver
- EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
- The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- All are designed and made in Taiwan to ensure high quality and value.
ACT-312
UHF Analog Dual-Channel Receiver
- EIA standard metal chassis equipped with a green backlit LCD screen and electronic buttons on the front panel. The LCD screen will automatically turn bright to identify “Working” or “Standby” mode.
- The most reliable 24 MHz narrowband high dynamic range receiving circuit greatly decreases intermodulation distortion and increases interference-free compatible channels.
- Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
- MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
- There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose 8 working channels from 961 available frequencies.
- Each channel has separate audio output and 3 switchable output gains, or mix signals from all channels with just one output jack. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
- Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
- External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
- All are designed and made in Taiwan to ensure high quality and value.

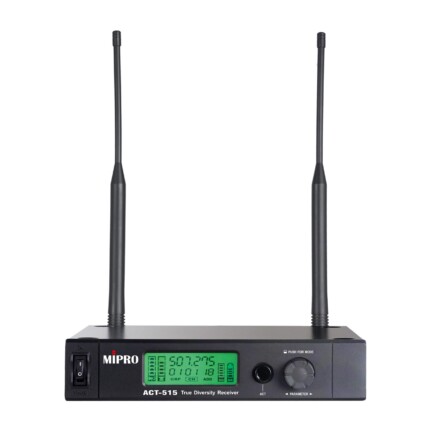

ACT-515
