| Article number: | 520-0052 |
|---|---|
| Name: | Binary 234 AES/EBU MKII |
| EAN: | 4049371002363 |
| Properties: | Analog, Digital 110 Ω AES / EBU, OFC oxygen free copper |
| Application area: | ELA 100 V, Installation, Mobile outdoor / indoor, Stage / live, Studio / Broadcast |
| Application: | DMX |
| Colour: | blue |
| Signal transmission: | symmetrical |
| Construction: | (2LI2Y0,34mm²)(ST)DY |
| Jacket material: | PVC |
| Jacket Ø [mm]: | 6.20 |
| Jacket Ø [“]: | 0.2441 |
| Number of Channels (AES/EBU, DMX): | 1 |
| Inner conductor (AES/EBU, DMX): | 2 |
| Inner conductor (AES/EBU, DMX) [mm²]: | 0,34 |
| Inner conductor (AES/EBU, DMX) [sqin]: | 0.0005 |
| Inner conductor Ø (AES/EBU, DMX) [mm]: | 0,66 |
| Inner conductor Ø (AES/EBU, DMX) [“]: | 0.026 |
| AWG (AES/EBU, DMX): | 22 |
| Shielding: | Copper spiral shielding + aluminum steamed fleece |
| Shielding factor [%]: | 100 |
| Copper strands (AES/EBU, DMX): | 19 |
| Copper strand Ø (AES/EBU, DMX) [mm]: | 0,15 |
| Copper strand Ø (AES/EBU, DMX) [“]: | 0.0059 |
| Conductor insulation material: | Foam / Skin-PE |
| Conductor insulation Ø [mm]: | 1,50 |
| Conductor insulation Ø [“]: | 0.0591 |
| Weight per 1 m [g]: | 51 |
| Weight at 1000 ft. [lbs]: | 33.6458 |
| Fire load per m [kWh]: | 0,17 |
| Style variant: | round |
| Packing: | 100 m spool |
| Temperature min. [°C]: | -25 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 6,2 |
| Width [“]: | 0.2441 |
| Height [mm]: | 6,2 |
| Height [“]: | 0.2441 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF]: | 63 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF]: | 19.2024 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF]: | 115 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF]: | 35.052 |
| Impedance [Ω]: | 110 |
| Insulation resist. per 1 km [GΩ]: | 1 |
| Insulation resist. per 1000 feet [GΩ]: | 0.3048 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ]: | 1 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ]: | 0.3048 |
| Conductor resistance per 1 km [Ω]: | 53 |
| Conductor resistance per 1000 ft. [Ω]: | 16.1544 |
| Shield. resistance per 1 km [Ω]: | 28 |
| Shield. resistance per 1000 ft. [Ω]: | 8.5344 |
| BPVo-Euroclass: | Fca |

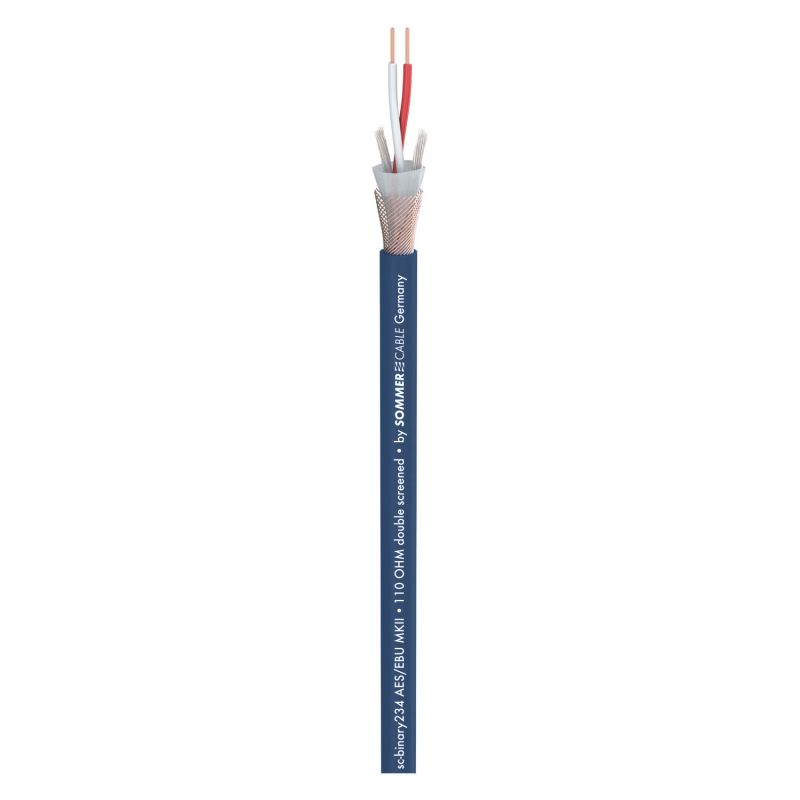

Binary 234 AES/EBU MKII
Swinging with your girlfriend…
like Tarzan in the jungle. With this cable you could just do that: it can take a lot of tugging, bending, and rough wear and tear. This is important when installing it in sharp-edged lighting trusses.

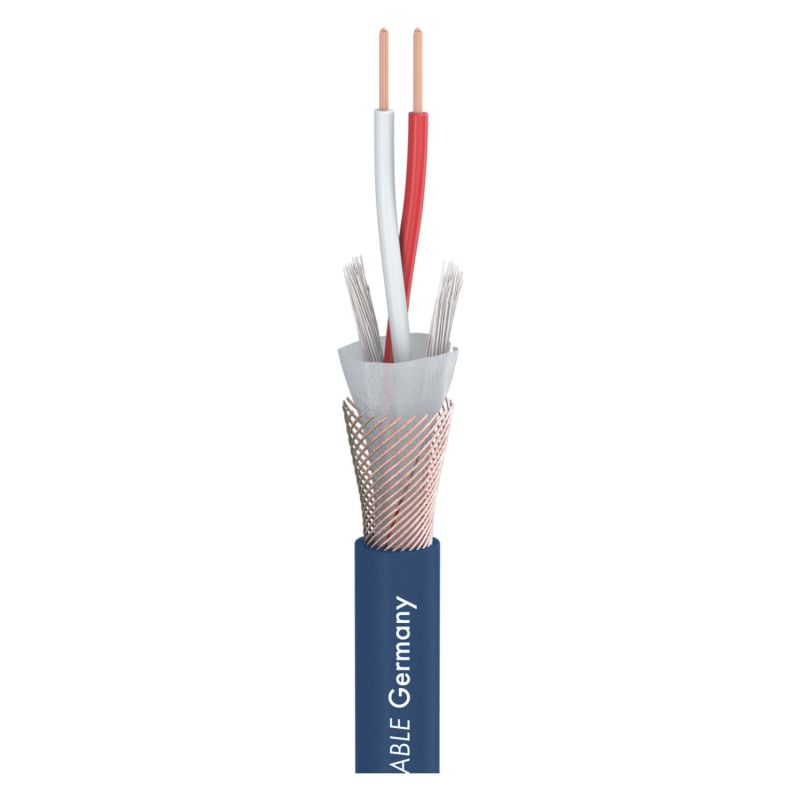

The Binary 234 AES/EBU MKII is an outstanding cable for the transmission of digital signals in the 110 Ω AES/EBU and DMX data format. Its shielding is provided by an aluminum-vaporised fleece and a helical copper mesh screen with 100 % coverage. So it offers a very good protection against electric and magnetic interferences. This cable ensures an error-free data transfer over distances of up to 1000 metres. With the Binary 234 AES/EBU MKII you’ll be on the safe side.
Advantages:
- AES/EBU- and DMX-conformant, highly flexible
- Very good shielding due to the use of a helical copper mesh screen plus
an aluminium-vaporised fleece - Extremely rugged due to the special tough jacket
- Only a little more expensive than a standard microphone cable
Application:
- Networking of scanners, lighting systems, digital mixing consoles etc.
- For indoor and outdoor installation
- Connection of digital audio amplifiers, DAT recorders etc.
