| Article number: | 490-0051-425 |
|---|---|
| Name: | Elephant SPM425 |
| EAN: | 4049371002233 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | ELA 100 V, Installation, Mobile outdoor / indoor, Stage / live, Studio / Broadcast |
| Application: | Speaker Cable |
| Colour: | black |
| Construction: | (4LIY2,5mm²)Y |
| Jacket material: | PVC |
| Jacket Ø [mm]: | 10,20 |
| Jacket Ø [“]: | 0.4016 |
| Number of Channels (audio): | 1 |
| Inner conductor (audio): | 4 |
| Inner conductor (audio) [mm²]: | 2,50 |
| Inner conductor (audio) [sqin]: | 0.0039 |
| Inner conductor Ø (audio) [mm]: | 1,78 |
| Inner conductor Ø (audio) [“]: | 0.0701 |
| AWG (audio): | 13 |
| Copper strands (audio): | 78 |
| Copper strand Ø (audio) [mm]: | 0,20 |
| Copper strand Ø (audio) [“]: | 0.0079 |
| Conductor insulation Ø [mm]: | 3,05 |
| Conductor insulation Ø [“]: | 0.1201 |
| Weight per 1 m [g]: | 180 |
| Weight at 1000 ft. [lbs]: | 121.1249 |
| UV-resistant: | yes |
| Fire load per m [kWh]: | 0,8 |
| Style variant: | round |
| Packing: | bulk stock |
| Temperature min. [°C]: | -25 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 10,2 |
| Width [“]: | 0.4016 |
| Height [mm]: | 10,2 |
| Height [“]: | 0.4016 |
| Insulation resist. per 1 km [GΩ]: | 0,005 |
| Insulation resist. per 1000 feet [GΩ]: | 0.0015 |
| Insulation resist. per 1 km (audio) [GΩ]: | 0,005 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.0015 |
| Conductor resistance per 1 km [Ω]: | 7,7 |
| Conductor resistance per 1000 ft. [Ω]: | 2.347 |
| Test voltage [V]: | 2000 |
| BPVo-Euroclass: | Fca |

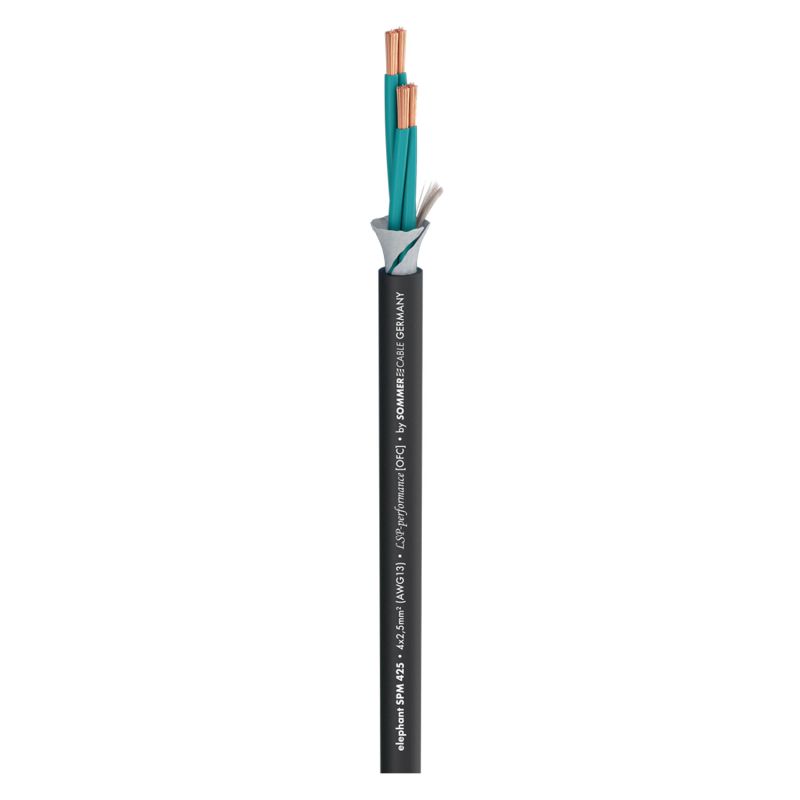

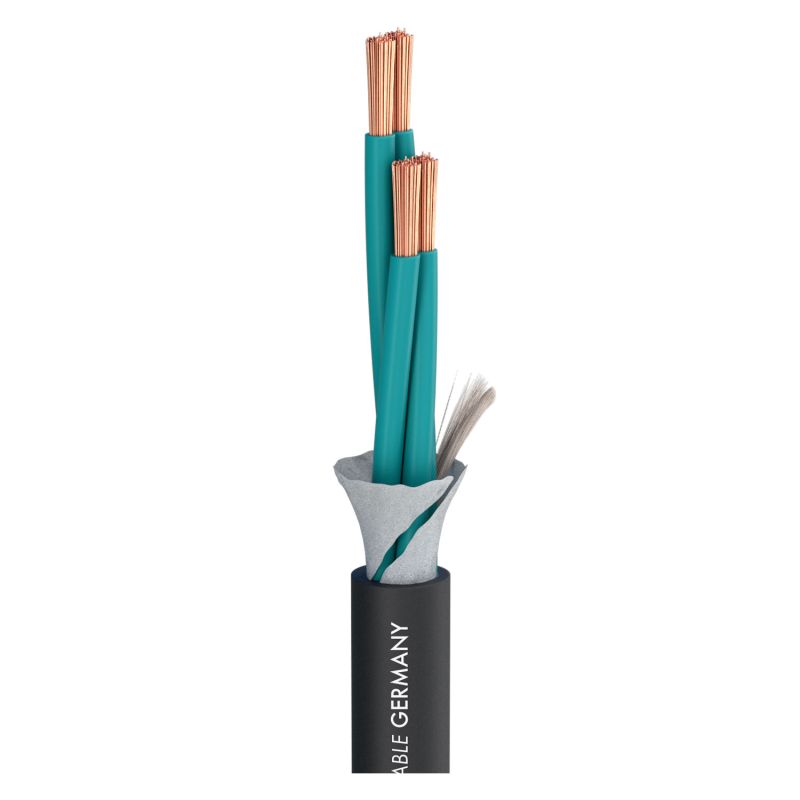

elephant 425
The wires are running hot…
and the crowd is cheering when the speaker walls are turned up all the way. Then not only the spirits are heating up, but also the cables. This puts very high demands on the cable which means that the outer jacket of the cable must be as thick as elephant skin. But it should also be flexible, robust, tread-resistant, easy to reel and of course reusable time and again.
Compare it with other speaker cables – the ELEPHANT is bound to convince you all out!
Advantages:
- Loss-free transmission due to the special litz stranding technology
- Highly flexible and stage-proof, easy to reel
- Compatible with the common NEUTRIK® speakON® connectors
- Easy to use due to well-insulated, numbered wires
Application:
- Professional PA systems
- Surround and woofer systems
- For permanent installation
