| Performance | |
| Frequency Range (-10 dB) | 60 Hz -20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | Splay Dependent |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 500 W |
| Nominal Amplifier Power LF (peak) | 1000 W |
| Nominal Amplifier Power MF (continuous) | 500 W |
| Nominal Amplifier Power MF (peak) | 1000 W |
| Nominal Amplifier Power HF (continuous) | 500 W |
| Nominal Amplifier Power HF (peak) | 1000 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |

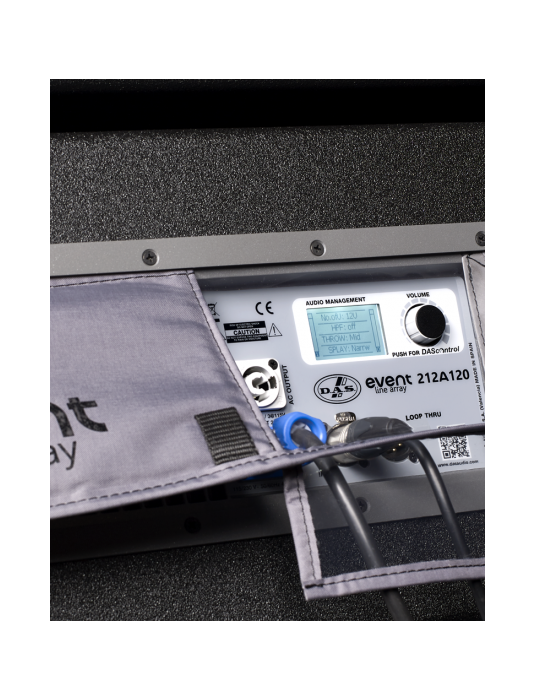

| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.8 A/3.6 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |

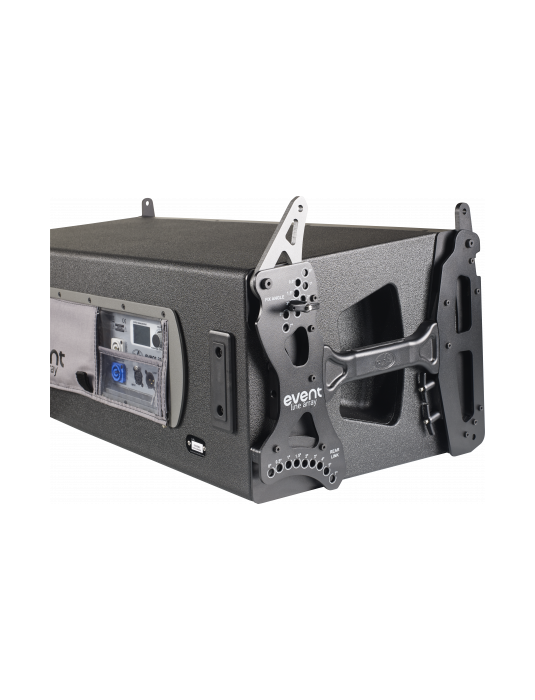

| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 325 x 855 x 435 mm 12,8 x 33,7 x 17,1 in |
| Net Weight | 41,0 kg ( 90,4 lb ) |
| Components | |
| LF Driver | 12MI4 |
| MF Driver | 12MI4 |
| HF Driver | M-75 |
| Horn/Waveguide | BPS-90VNT |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 470 x 275 x 480 mm 18,5 x 10,8 x 18,9 in |
| Shipping Weight | 43,5 kg ( 95,9 lb ) |
