| Article number: | 415-0056 |
|---|---|
| Name: | Meridian Mobile SP215 |
| EAN: | 4049371003445 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | ELA 100 V, Mobile outdoor / indoor, Stage / live, Studio / Broadcast |
| Application: | Speaker Cable |
| Colour: | grey |
| Construction: | (2LIY1,50mm²)Y |
| Jacket material: | PVC |
| Jacket Ø [mm]: | 6.80 |
| Jacket Ø [“]: | 0.2677 |
| Number of Channels (audio): | 1 |
| Inner conductor (audio): | 2 |
| Inner conductor (audio) [mm²]: | 1,50 |
| Inner conductor (audio) [sqin]: | 0.0023 |
| Inner conductor Ø (audio) [mm]: | 1,38 |
| Inner conductor Ø (audio) [“]: | 0.0543 |
| AWG (audio): | 16 |
| Copper strands (audio): | 84 |
| Copper strand Ø (audio) [mm]: | 0,15 |
| Copper strand Ø (audio) [“]: | 0.0059 |
| Conductor insulation Ø [mm]: | 2,62 |
| Conductor insulation Ø [“]: | 0.1031 |
| Weight per 1 m [g]: | 78 |
| Weight at 1000 ft. [lbs]: | 52.4874 |
| Fire load per m [kWh]: | 0,28 |
| Style variant: | round |
| Packing: | 100 m spool, 500 m spool |
| Temperature min. [°C]: | -30 |
| Temperature max. [°C]: | 70 |
| Width [mm]: | 6,8 |
| Width [“]: | 0.2677 |
| Height [mm]: | 6,8 |
| Height [“]: | 0.2677 |
| Capac. cond./cond. per 1 m (audio) [pF]: | 150 |
| Capacity wire/wire at 1 ft. (audio) [pF]: | 45.72 |
| Insulation resist. per 1 km [GΩ]: | 0,005 |
| Insulation resist. per 1000 feet [GΩ]: | 0.0015 |
| Insulation resist. per 1 km (audio) [GΩ]: | 0,005 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.0015 |
| Conductor resistance per 1 km [Ω]: | 13 |
| Conductor resistance per 1000 ft. [Ω]: | 3.9624 |
| BPVo-Euroclass: | Fca |

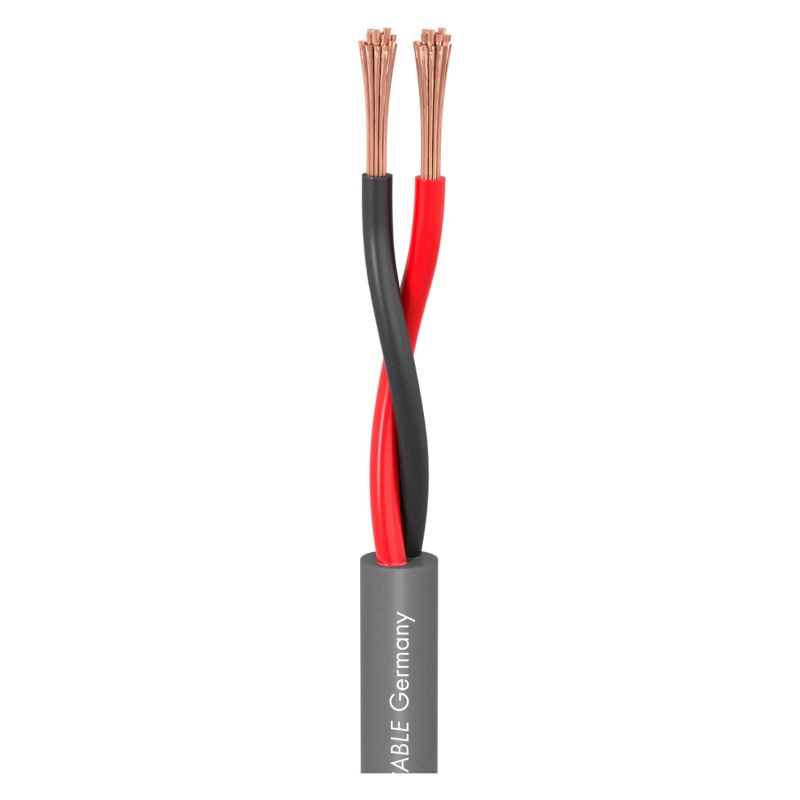

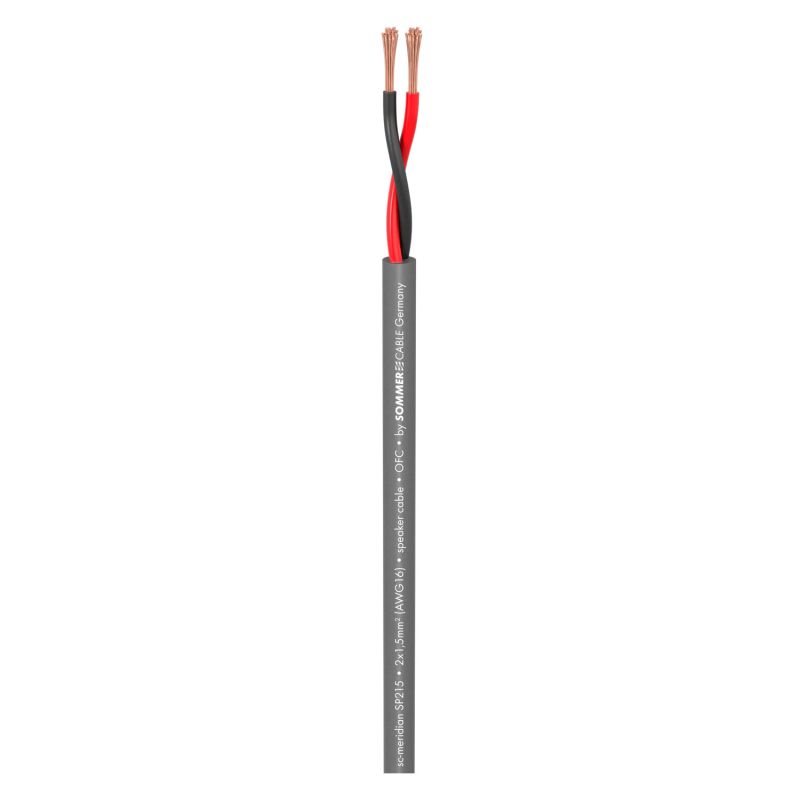

Meridian Mobile SP215
Where brute force reigns in a useful manner…
the sound people are at work and they will treat the cables not exactly squeamishly.
No problem for our robust Meridian Mobile SP215. This cable has been designed particularly for loudspeakers and here it meets all specific technical requirements. Low-oxygen Cu wires ensure better sound quality and a longer life. All PVC versions are easy to reel.
Advantages:
- flexible and easy to rollable for cable reel
- Small in diameter
- Very durable due to the use of special coating mixtures
- Affordable price
Application:
- PA sound systems of all kinds
- For ELA technology
- Cabling of HiFi systems
