MR-58VL
Back to products
MU-23

MR-58ST

Wireless Tenor Saxophone Set

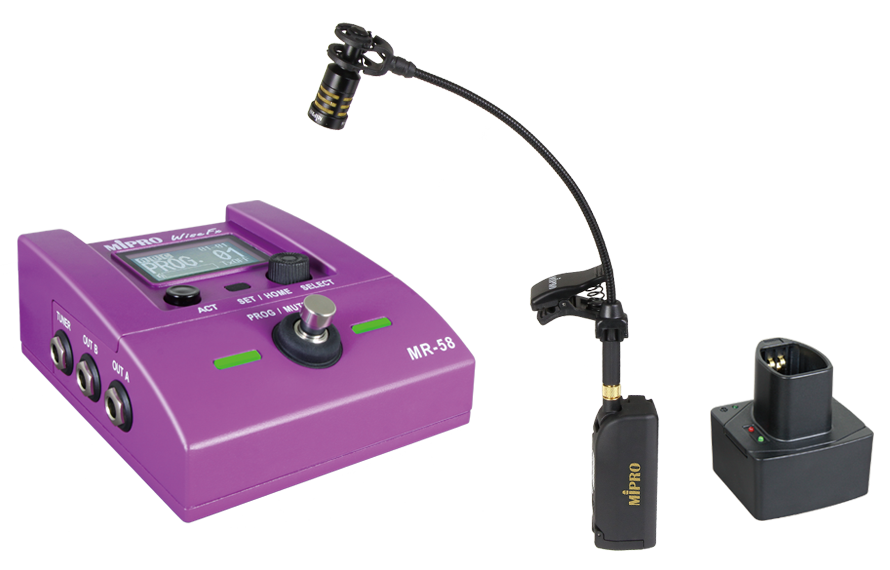

  • MR-58ST Wireless Tenor Saxophone Set includes MR-58 wireless pedal receiver and MT-58ST transmitter set (MT-58 + SM-10T + MP-24).
Compare
Add to wishlist
Categories: ,
Description
Model MR-58
Name 5 GHz Digital Wireless Pedal Receiver
Frequency Band ISM 5.8 GHz
Frequency Response 18 Hz – 23 kHz
Latency < 1.7 ms
S/N Ratio > 120 dBA
THD 0.04 % @ 1 kHz
Sensitivity -95 dBm
Channel Setting ACT™ sync
Sample Rate 48 kHz / 24-bit
Modulation Digital modulation
Receiving Mode True diversity
Display Graphic LCD, 2 × color LED
Audio Output 3 × 6.3 mm TRS, 1 × XLR
Interface microSD slot
Power Supply DC 9 V – 12 V / 0.3 A
Dimensions 110 × 50 × 130 mm (W × H × D)
Weight Approx. 840 g

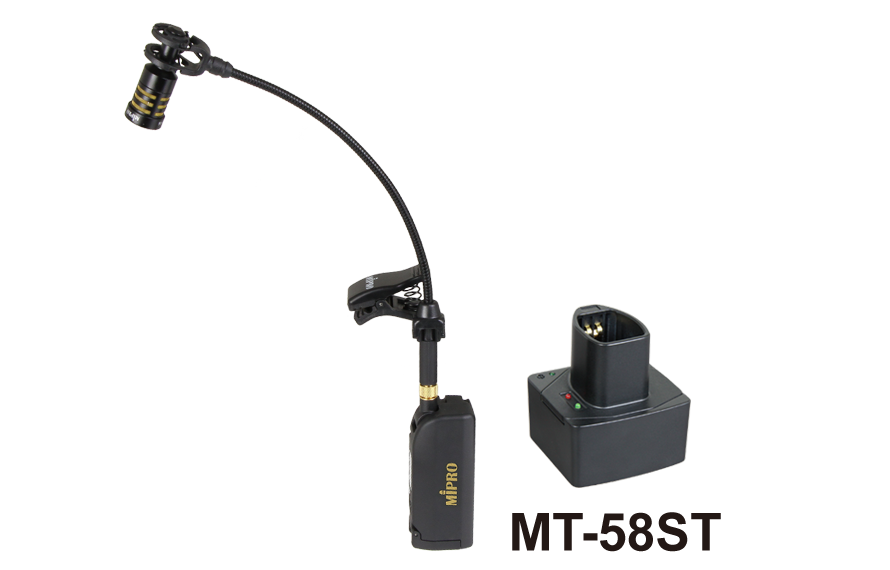

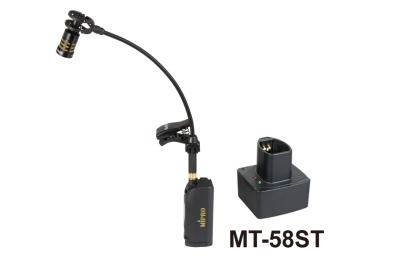

Model MT-58ST
Name Tenor Saxophone Transmitter Set
Frequency Range ISM 5.8 GHz (5,725~5,850 MHz)
RF Power Output 20 mW (country dependent)
Max. Audio Input 6.5 dBV
Battery Meter 4-level green/red LED display
Impedance Approx. 1 M Ω
Transmitter Dimensions 84 × 35 × 29 mm (W×H×D)
Transmitter Weight Approx. 61 g, excluding battery
Battery ICR 18500 lithium-ion battery
Microphone Module SM-10T Tenor Saxophone Microphone Set
Note Refer to the actual product in the event of product discrepancy.

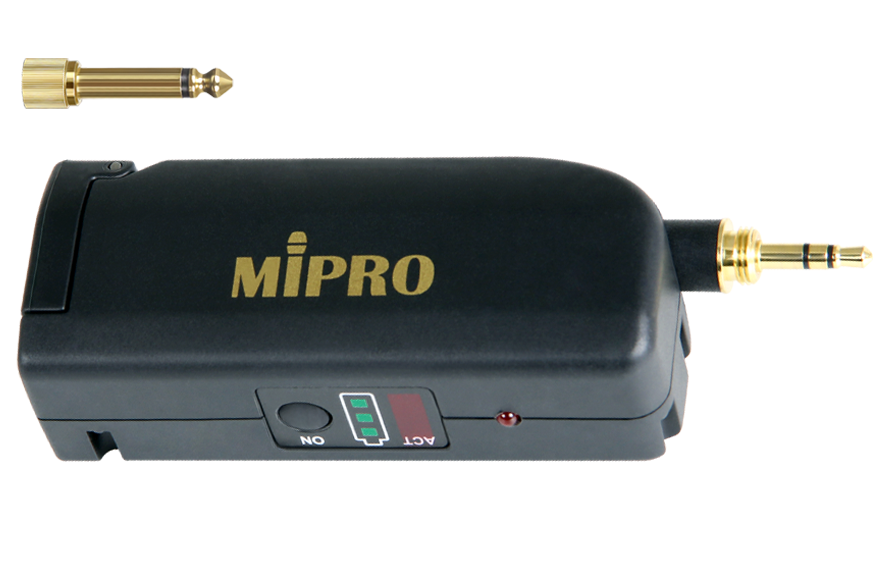

Model MT-58
Name 5 GHz Digital Transmitter
Frequency Band ISM 5.8 GHz
RF Power Output 20 mW (country dependent)
Max. Audio Input 6.5 dBV
Battery Meter 4-level green/red LED display
Impedance Approx.1 M Ω
Connector 3.5 mm. Another 3.5 mm to 6.3 mm threaded adapter is included.
Battery Type One 18500 Li-ion battery
Battery Charging MP-24 charging station
Dimensions 35 × 84 × 29 mm (W × H × D)
Weight Approx. 61 g
