MR-58GE
Back to products
MR-58ST

MR-58VL

Wireless Violin / Viola Set

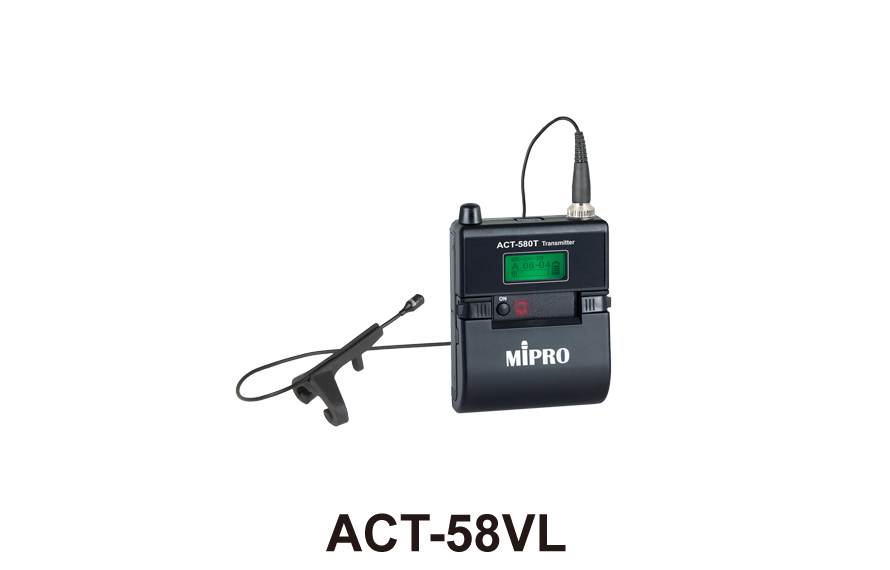

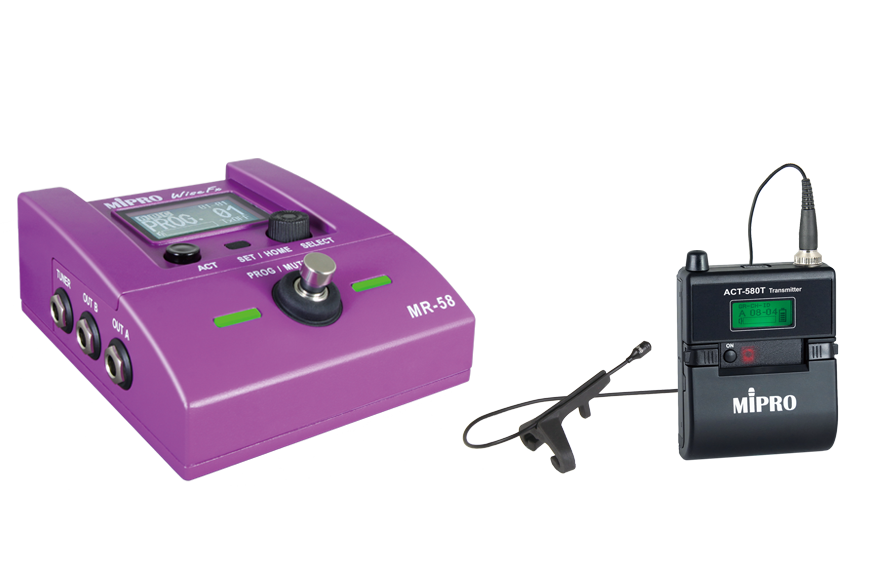

  • MR-58VL Wireless Violin / Viola Set includes MR-58 wireless pedal receiver and ACT-58VL transmitter set (ACT-580T + VM-10L).
Compare
Add to wishlist
Categories: ,
Description
Model MR-58
Name 5 GHz Digital Wireless Pedal Receiver
Frequency Band ISM 5.8 GHz
Frequency Response 18 Hz – 23 kHz
Latency < 1.7 ms
S/N Ratio > 120 dBA
THD 0.04 % @ 1 kHz
Sensitivity -95 dBm
Channel Setting ACT™ sync
Sample Rate 48 kHz / 24-bit
Modulation Digital modulation
Receiving Mode True diversity
Display Graphic LCD, 2 × color LED
Audio Output 3 × 6.3 mm TRS, 1 × XLR
Interface microSD slot
Power Supply DC 9 V – 12 V / 0.3 A
Dimensions 110 × 50 × 130 mm (W × H × D)
Weight Approx. 840 g
Model ACT-580T
Name 5 GHz Digital Bodypack Transmitter
Frequency Band ISM 5.8 GHz
Display Backlit LCD
Mic. Capsule Module Work with all MIPRO’s lavalier and headworn mics
Input Connector MIPRO 4-Pin Mini XLR
Max. Audio Input 6.5 dBV
RF Power Output 20 mW (country dependent)
Battery Type One 18500 Li-ion battery or two AA alkaline
Battery Charging USB Type-C
Dimensions 63 × 80 × 25 mm (W × H × D)
Weight Approx. 82 g

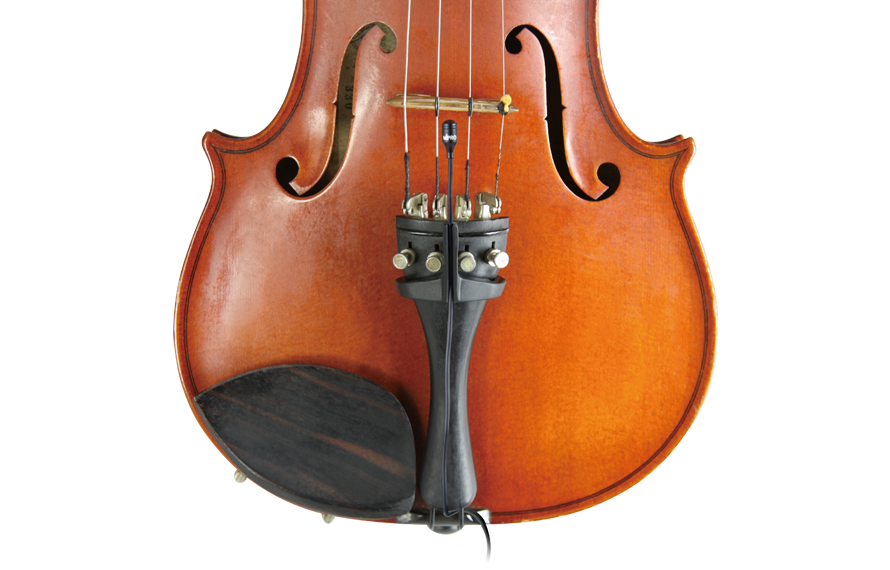

Model VM-10L
Name Violin/Viola Microphone Set
Color Black
Cable VC-10L
Holder VH-10L
Capsule Module MU-55V
Directionality Omnidirectional
Max. SPL 135 dB
Note Refer to the actual product in the event of product discrepancy.
