| Article number: | 300-0021NE |
|---|---|
| Name: | Tricone® MKII |
| EAN: | 4049371002141 |
| Properties: | Analog, OFC oxygen free copper |
| Application area: | Installation, Mobile outdoor / indoor, Stage / live |
| Application: | Instrument Cable |
| Colour: | black |
| Signal transmission: | asymmetrical |
| Construction: | LI2Y(LS)DY1x0,22mm² |
| Jacket material: | PVC |
| Jacket Ø [mm]: | 5,90 |
| Jacket Ø [“]: | 0.2323 |
| Number of Channels (audio): | 1 |
| Inner conductor (audio): | 1 |
| Inner conductor (audio) [mm²]: | 0,22 |
| Inner conductor (audio) [sqin]: | 0.0003 |
| Inner conductor Ø (audio) [mm]: | 0,53 |
| Inner conductor Ø (audio) [“]: | 0.0209 |
| AWG (audio): | 24 |
| Shielding: | Copper spiral shielding + semiconductor |
| Shielding factor [%]: | 100 |
| Copper strands (audio): | 28 |
| Copper strand Ø (audio) [mm]: | 0,10 |
| Copper strand Ø (audio) [“]: | 0.0039 |
| Conductor insulation material: | Foam / Skin-PE |
| Conductor insulation Ø [mm]: | 1,80 |
| Conductor insulation Ø [“]: | 0.0709 |
| Weight per 1 m [g]: | 42 |
| Weight at 1000 ft. [lbs]: | 28.2625 |
| UV-resistant: | yes |
| Fire load per m [kWh]: | 0,26 |
| Style variant: | round |
| Packing: | 100 m spool, 500 m spool |
| Temperature min. [°C]: | -25 |
| Temperature max. [°C]: | 60 |
| Width [mm]: | 5,9 |
| Width [“]: | 0.2323 |
| Height [mm]: | 5,9 |
| Height [“]: | 0.2323 |
| Capac. cond./shield. per 1 m (audio) [pF]: | 85 |
| Capacity wire/electic screen at 1 ft. (audio) [pF]: | 25.908 |
| Insulation resist. per 1 km [GΩ]: | 1 |
| Insulation resist. per 1000 feet [GΩ]: | 0.3048 |
| Insulation resist. per 1 km (audio) [GΩ]: | 1 |
| Insulation resist. per 1000 feet (audio) [GΩ]: | 0.3048 |
| Conductor resistance per 1 km [Ω]: | 90 |
| Conductor resistance per 1000 ft. [Ω]: | 27.432 |
| BPVo-Euroclass: | Fca |

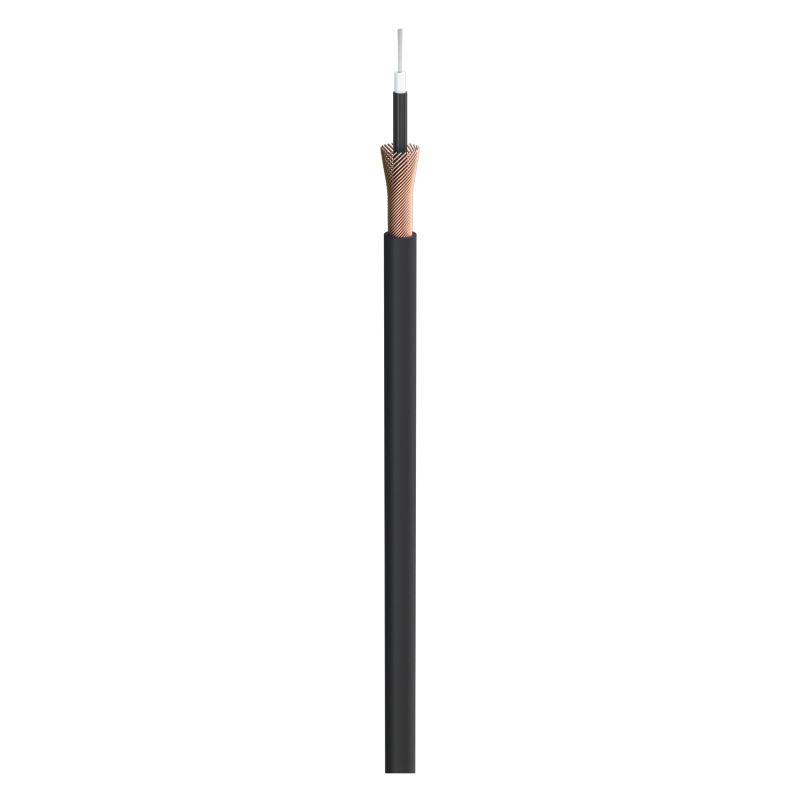

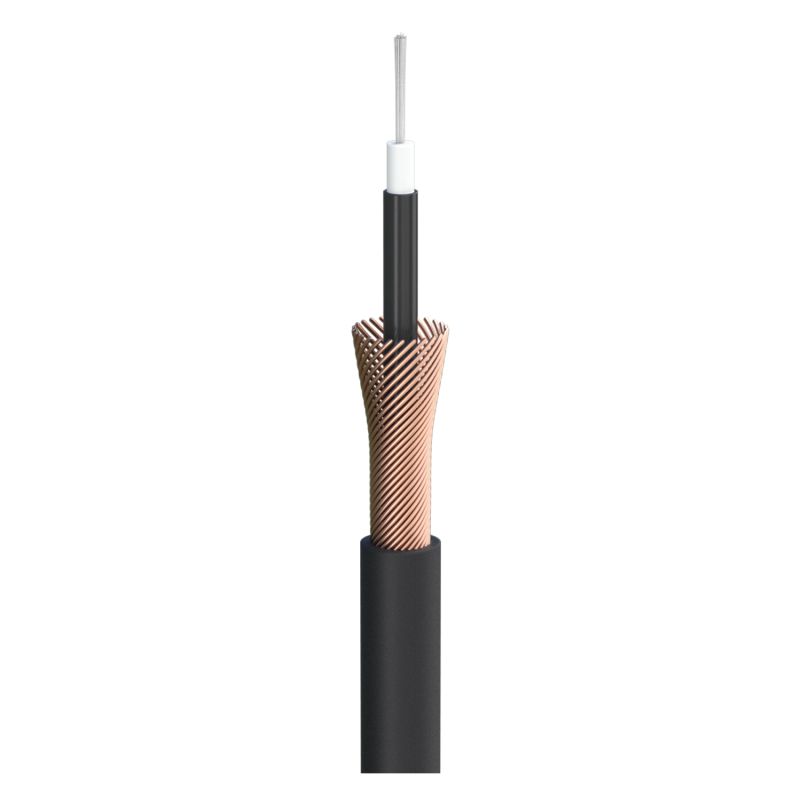

Tricone® MKII
String artists…
will be delighted at this cable.
The Tricone® MKII is a flexible cable for guitar or keyboard and equally interesting for the live musician, studio keyboarder and the home recorder. Because of its decent wire gauge of 0,22 mm² and the fine single 0.10 mm wires, it is protected against cable break and convinces with high bending cycles. It is very robust, easy to reel and very reasonably priced. When making cables, care should be taken to remove the conductive shielding (black PVC hose) from the insulation so that it won’t touch the inner conductor.
Tricone® MKII is a protected and registered trademark of SOMMER CABLE GmbH.
Advantages:
- Very robust due to the large wire cross-section and fine Cu single wires
- Good electrical values due to the Skin PE insulation
- 100 % protection by dual shielding (helical copper mesh screen + conductive carbon screen)
- High number of bending cycles
Application:
- Dependable cable for live applications (guitar and keyboard)
- Economy-priced Line-in or Patchcable for the Homerecorder
