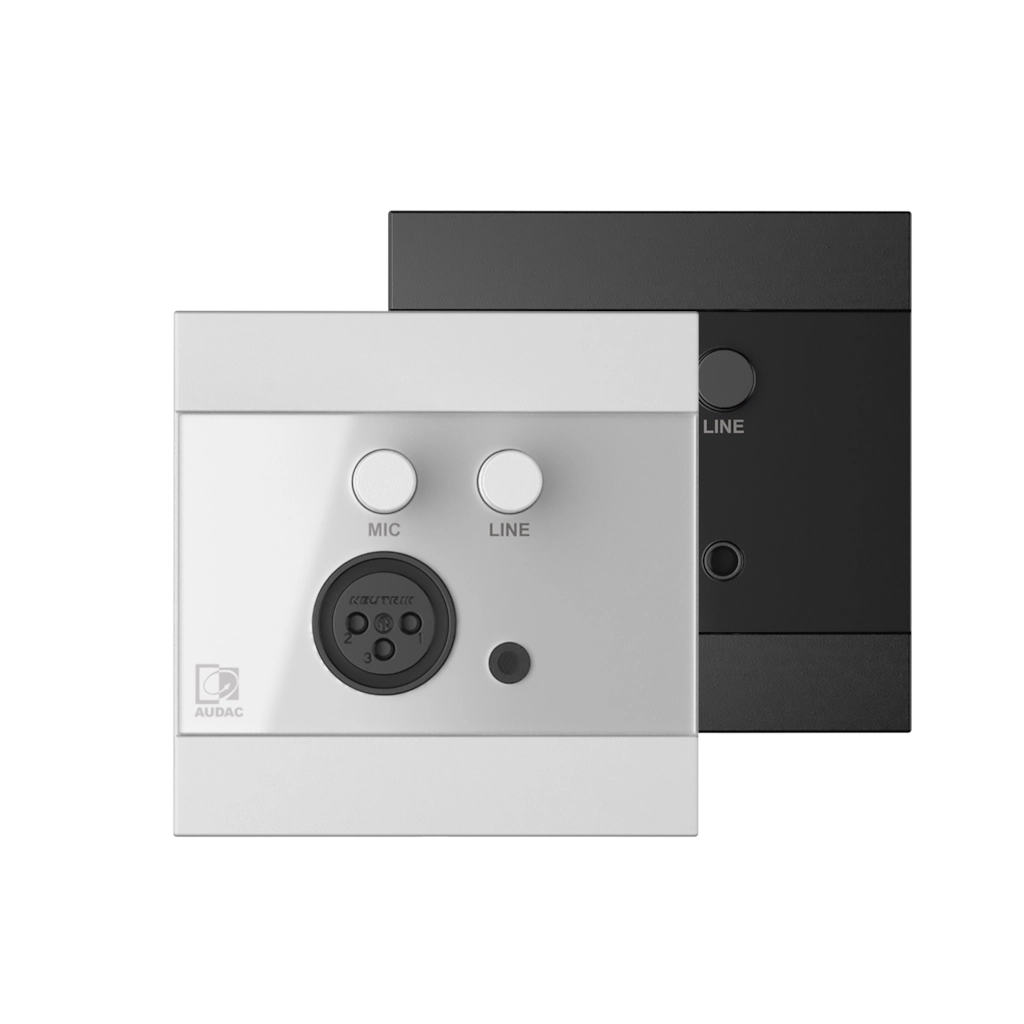

Available models

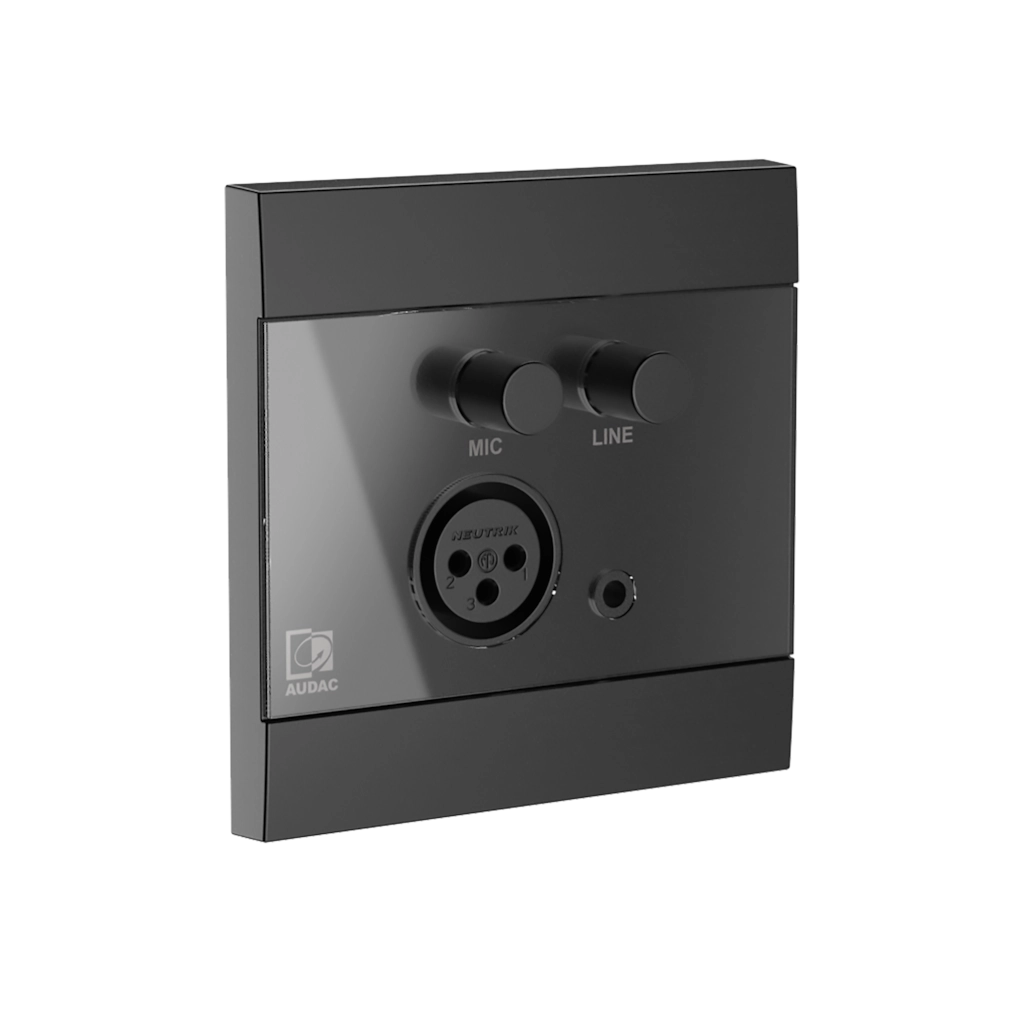

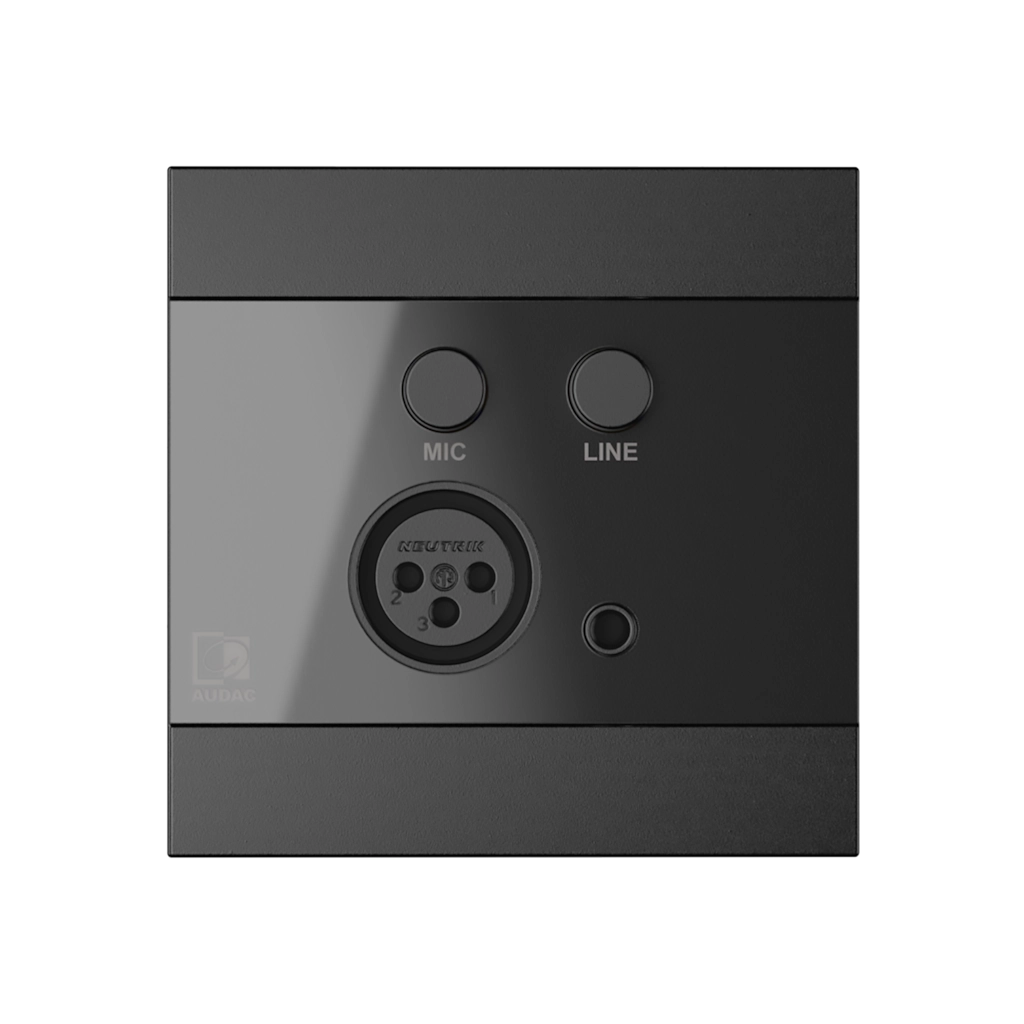

| WP205/B | Black version |

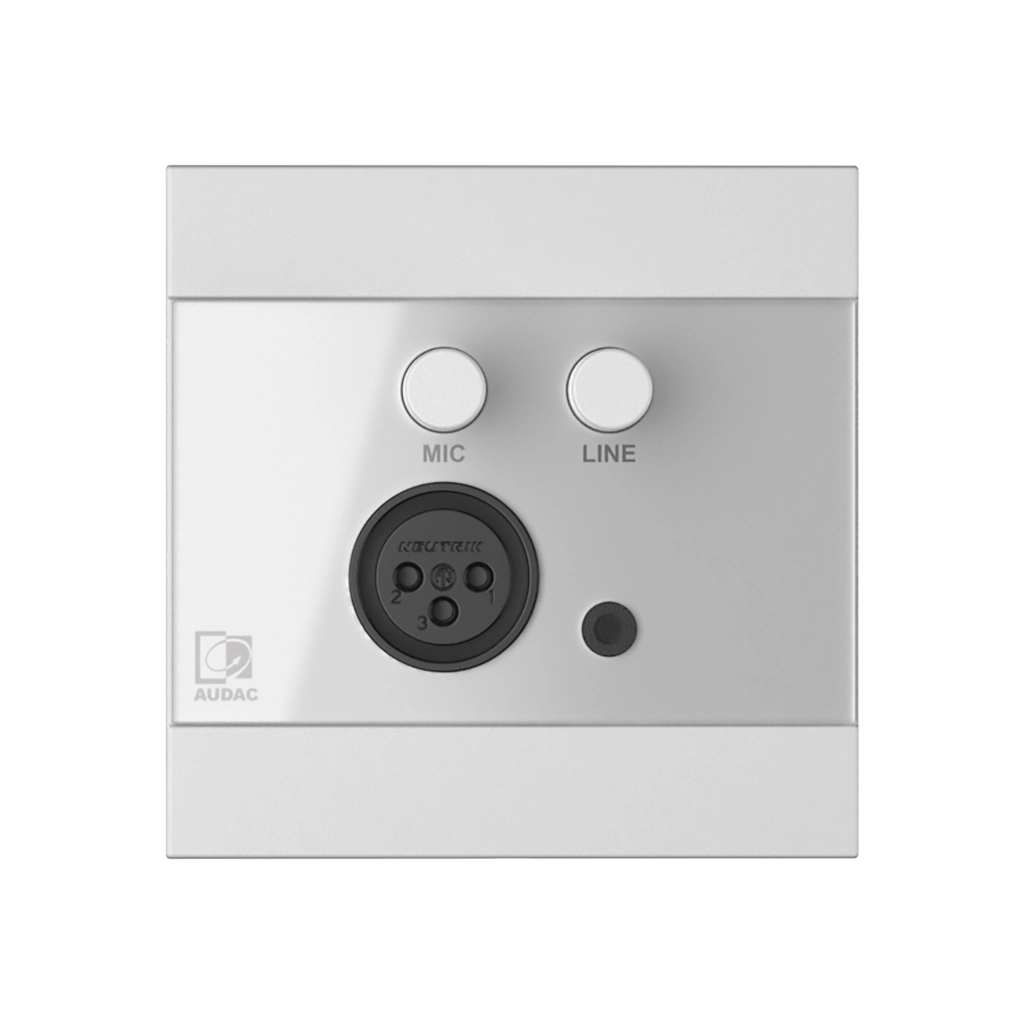

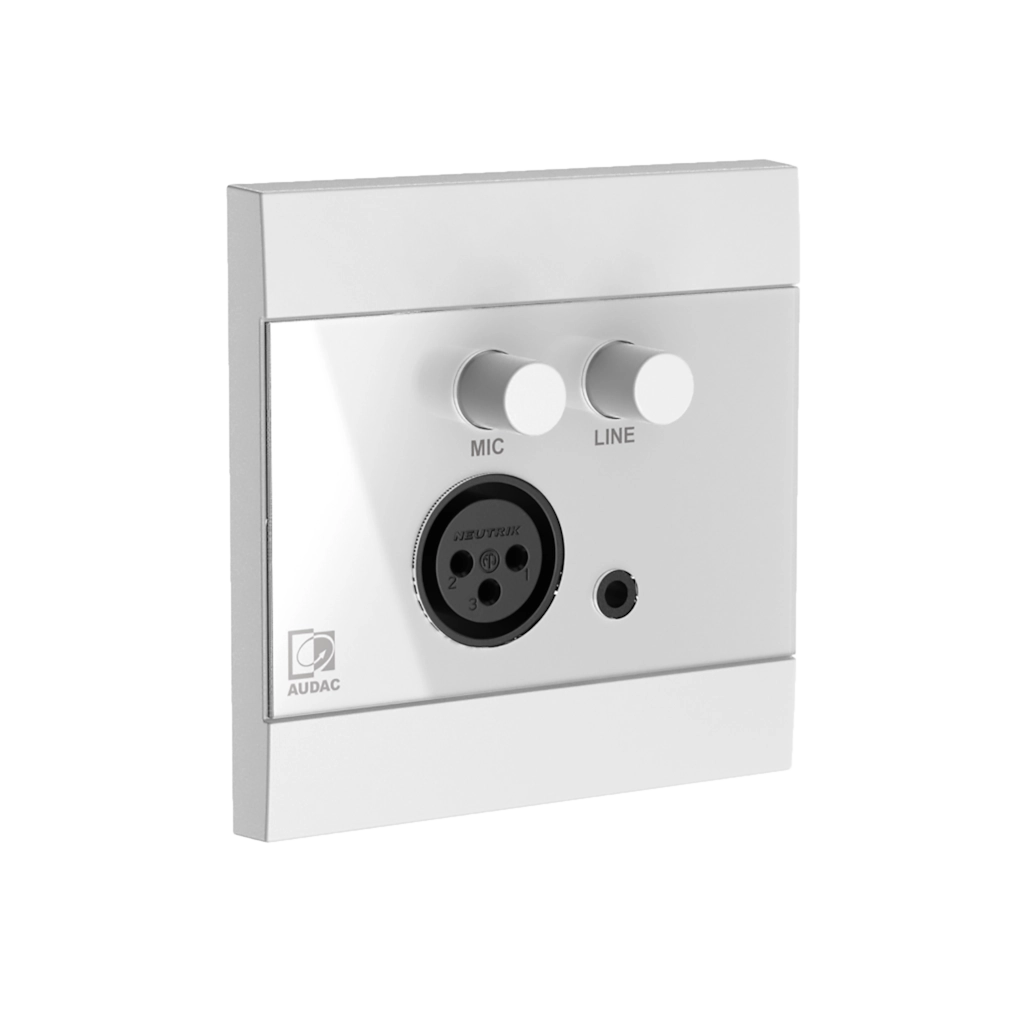

| WP205/W | White version |
System specifications
| Outputs | Level | +12 dB | |
| Inputs | Wall Panel | Type | 3.5 mm jack stereo line input connection |
| XLR microphone input connection | |||
| Connection | 3.5 mm jack input (Stereo line input) | ||
| Female XLR input connector (Microphone input) | |||

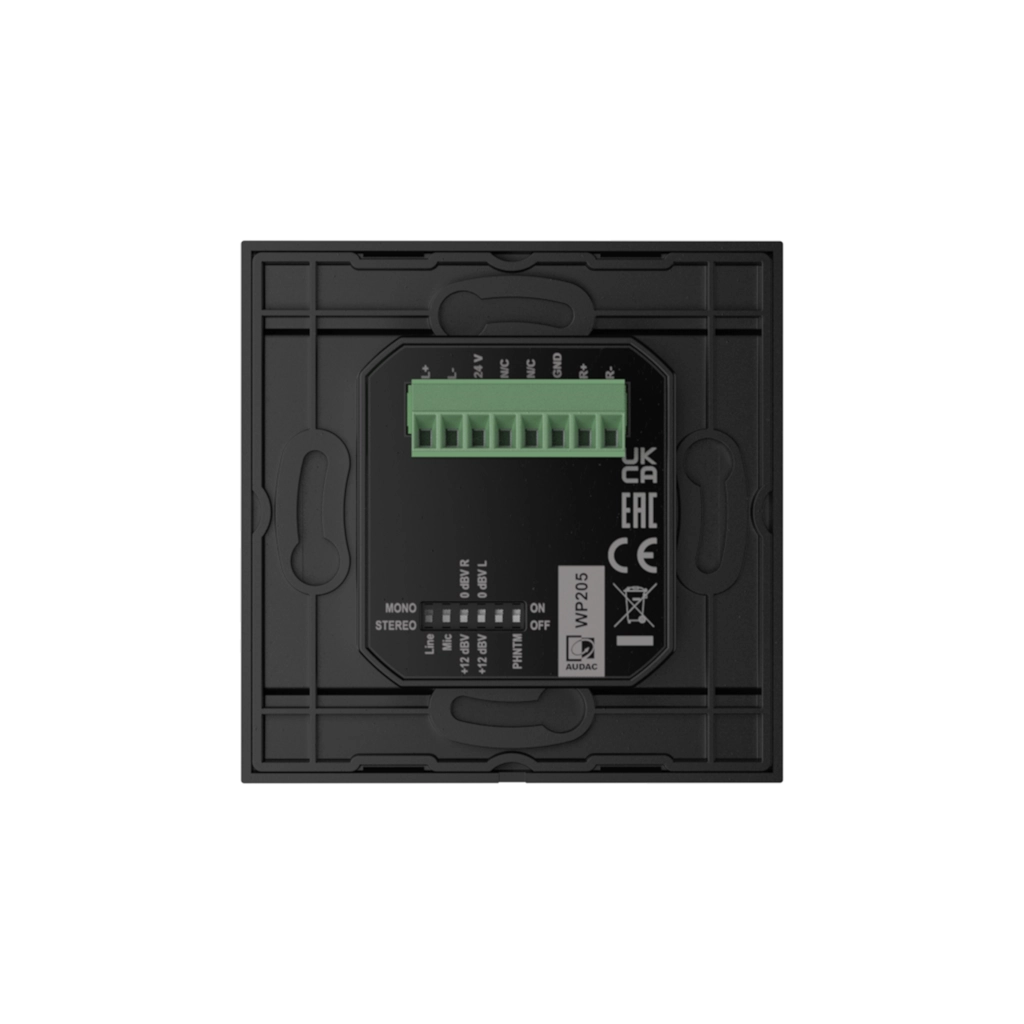

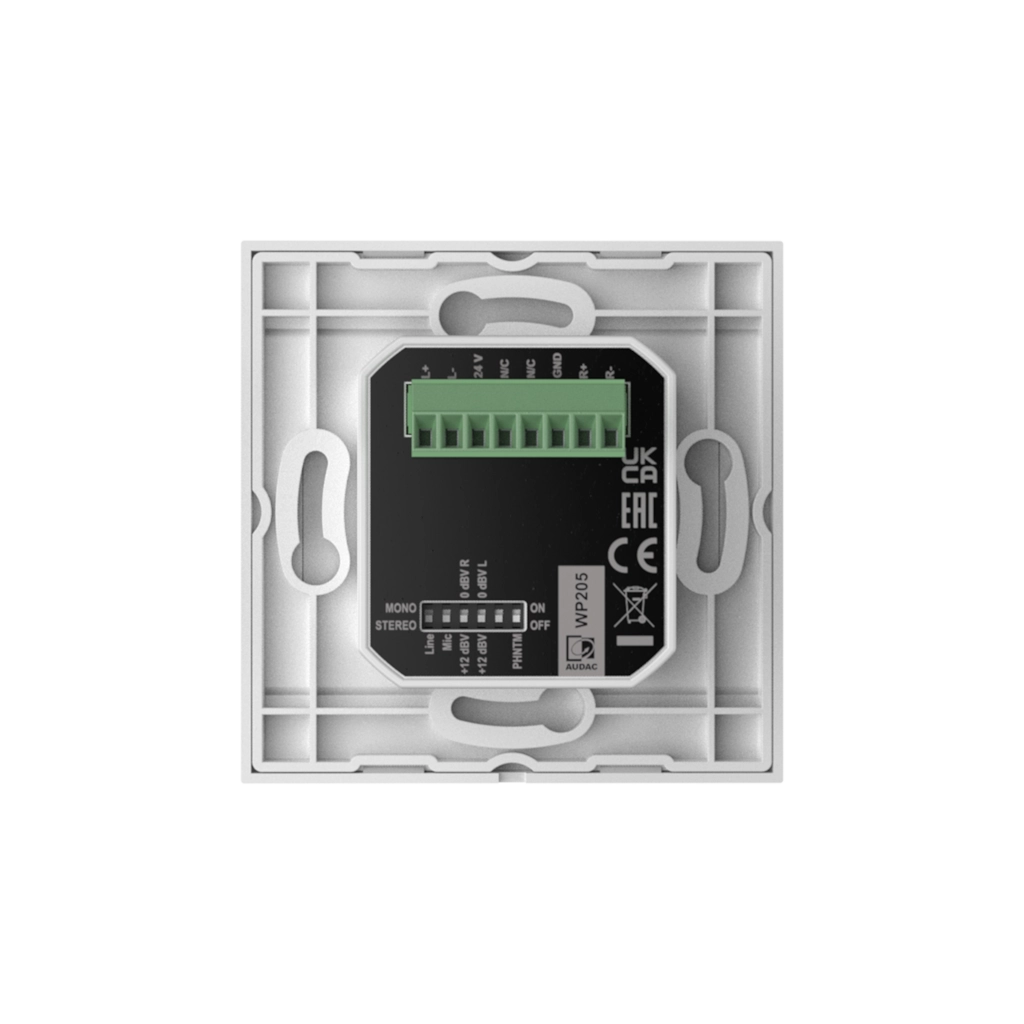

| 8-pin terminal block (3.81 mm pitch) output connection | |||
| Control | Individual input level control for Mic & Line | ||
| Phantom power (DIP switch on rear) | |||
| Low-cut (Mic) enable / disable (DIP switch on rear) | |||
| Mono / Stereo (DIP switch on rear) | |||
Product Features
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | ||
| Colours | Black (RAL9005) (WP205/B) | ||
| White (RAL9003) (WP205/W) | |||
| Front finish | Elegant ABS front panel with Acrylic (PMMA) glass finish | ||
| Accessories | Optional | Surface mount Installation boxes | WB200 – Surface mount wall box for WP & DWP series |
| Flush mount Installation boxes | Flush mount box for 45 x 45 mm wall panel – Solid wall – WB45S/FS | ||
| Flush mount box for 45 x 45 mm wall panel – Hollow wall – WB45S/FG | |||
Recommended applications
|
Education
|
|
Retail
|
|
Bars & Restaurants
|
|
Corporate
|
